Technical data …
| Manufacturer | Arctic |
| Description | Accelero Hybrid III-140 (Generic) |
| Compability (all cooler versions) | AMD: R9 390(X), 380(X), 370X, 290(X), 285, 280(X), 270(X), R7 265, HD 7970, 7950, 7870 XT, 7870 GHz Edition, 7850, 6970, 6950, 6870, 6850, 6790, 5870, 5850, 5830, 4890, 4870, 4850, 4830, 3870, 3850, 3690 nVidia: 1080, 1070, 980 (Ti), GTX Titan X, 970, 960, 780 (Ti), 770, 760, 680, 670, 660 Ti, 650 Ti Boost, 580, 570, 560 (Ti/SE), 550 Ti, 480, 470, 465, 460 (SE), GTS 450 |
| Dimensions heatsink(/Pump) | 70 x 28mm |

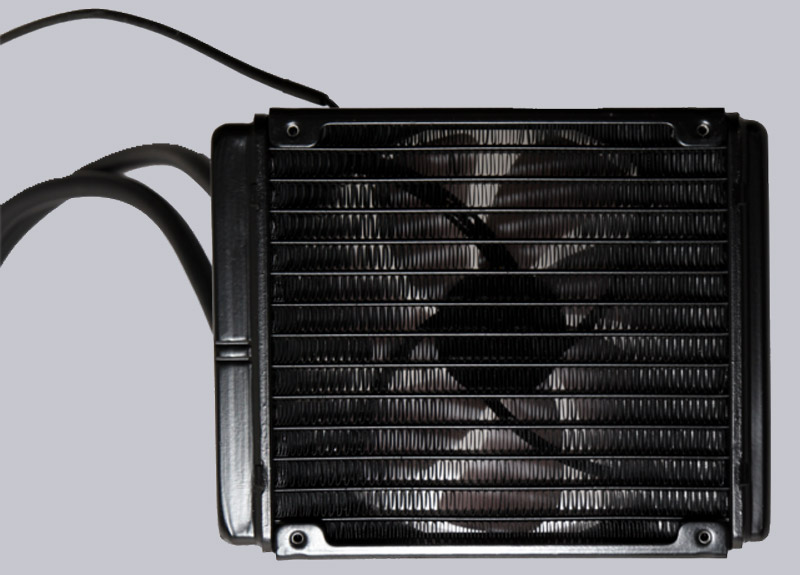

| Dimensions radiator | 170 x 140 x 27mm |
| Dimensions backplate | 120 x 91 x 12mm |
| Dimensions fan | 140 x 140 x 25 mm; 80 x 80 x 15 mm |
| Voltage fans | 12 V DC |
| Power intake fans | 0.26 A / 3.12 W; 0.11A / 1.32W |
| Fan speed | 380 – 1350 U/min; 600 – 2000 U/min |
| Airflow | not specified |
| Loudness | not specified |
| Fan connector | 4-Pin PWM / 4-Pin mini GPU (with Y-cable to 4-Pin) |
| Pump connector | 4-Pin Molex (2 pins used) |
| Tube length | 420 mm |
| Tube diameter | 11 mm |
Arctic Accelero Hybrid III-140 layout, design and other features …
