Technical data …
| Manufacturer | Arctic |
| Description | Liquid Freezer 120 |
| Socket | Intel 1150, 1151, 1155, 1156, 2011, 2011-3, AMD FM1, FM2(+), AM2(+), AM3(+) |
| Size base | 82 x 40mm |
| Size radiator | 120 x 155 x 49mm |

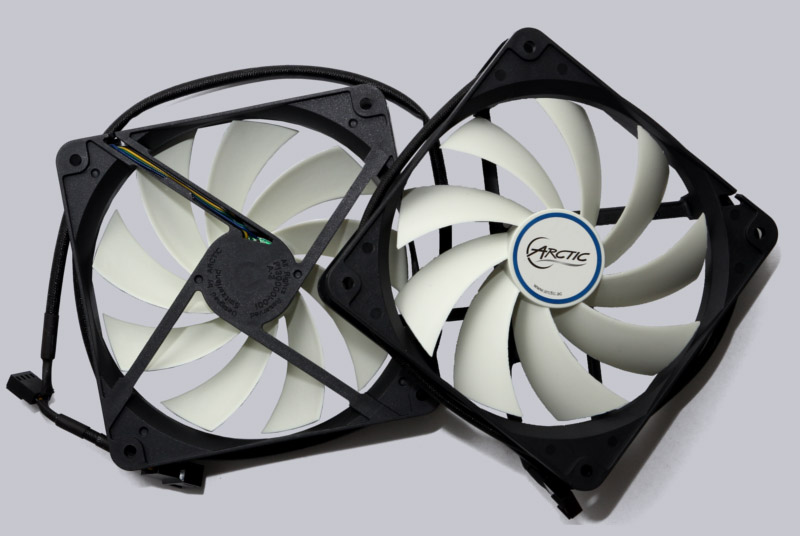

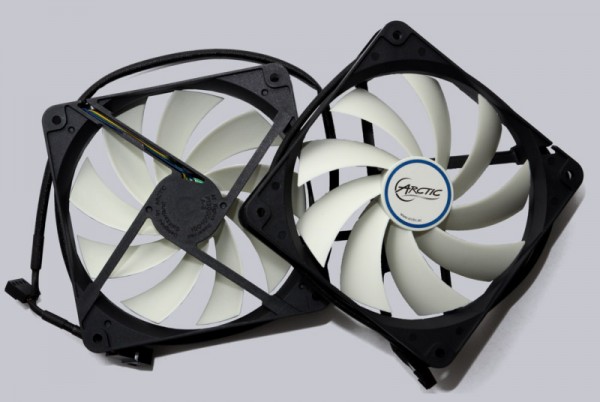

| Size fans | (2x) 120 x 120 x 25 mm |
| Voltage fans | 12 V DC |
| Power intake fans | (2x) 0.25 A / 4 W |
| Fan speed | 500 – 1350 rpm |
| Airflow (per fan) | 74 CFM / 126m³/h |
| Loudness per fan | 0.3 Sone |
| Fan connector | 2x 4-Pin PWM (Y-cable) |
| Tube length | 326 mm |
| Tube diameter (outer/inner) | 10.6 / 6.0 mm |
Arctic Liquid Freezer 120 layout, design and other features …
