This article shows you a preview of the current ASRock ALiveXFire-eSATA2 Mainboard.
ASRock Motherboard Preview August 2007 The newest ASRock Motherboards

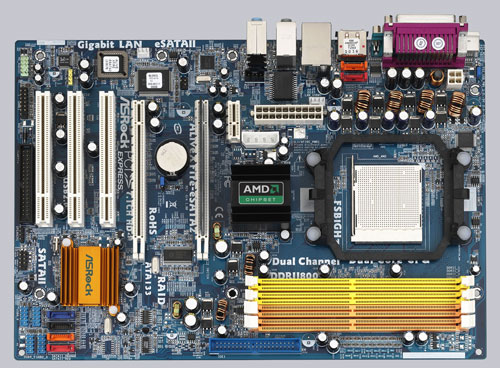

The new ASRock ALiveXFire-eSATA2 Motherboard …
ASRock’s ALiveXFire-eSATA2 supports thanks to the AMD 480X CrossFire chipset two AMD/ATI PCI Express video cards in CrossFire mode.

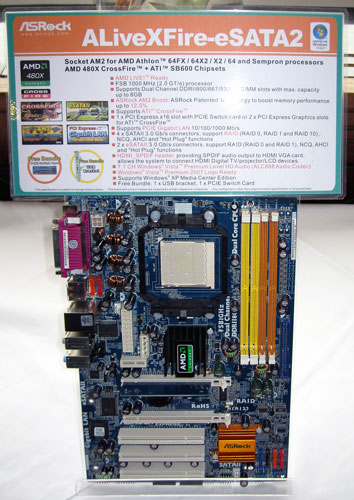

Here’s another picture of the ASRock ALiveXFire-eSATA2 Motherboard …
The manufacturers technical data for the ASRock ALiveXFire-eSATA2 Motherboard …
– Socket AM2 for AMD Athlon 64FX / 64X2 / X2 / 64 and Sempron processors – AMD 480X CrossFire Chipset – ATI SB600 Chipset – AMD LIVE! Ready – Supports ATI CrossFire – Bundled PCIE Switch card: allows better flexibility to choose between one PCI Express x 16 slot and two PCI Express Graphics slots for ATI CrossFire – 1 x PCI Express x16 slot with PCIE Switch card or 2 x PCI Express Graphics slots for ATI CrossFire – Supports Dual Channel DDRII800/667/533, 4 x DIMM slots, with max. capacity up to 8GB – ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% – Supports Gigabit LAN 10/100/1000 Mb/s – 4 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions – 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support RAID 0/1, NCQ, AHCI and Hot Plug – HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/ LCD devices – 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec) – Windows Vista Premium 2007 Logo Hardware Ready – Supports Windows XP Media Center Edition – Free Bundle: 1 x USB bracket
