The technical data …
| Manufacturer | ASRock |
| Description | G10 Gaming Router AC2600 |
| Dimensions | 266.5 mm x 184 mm x 82 mm (HxWxD) |
| Weight | 620g |
| Color | Black |

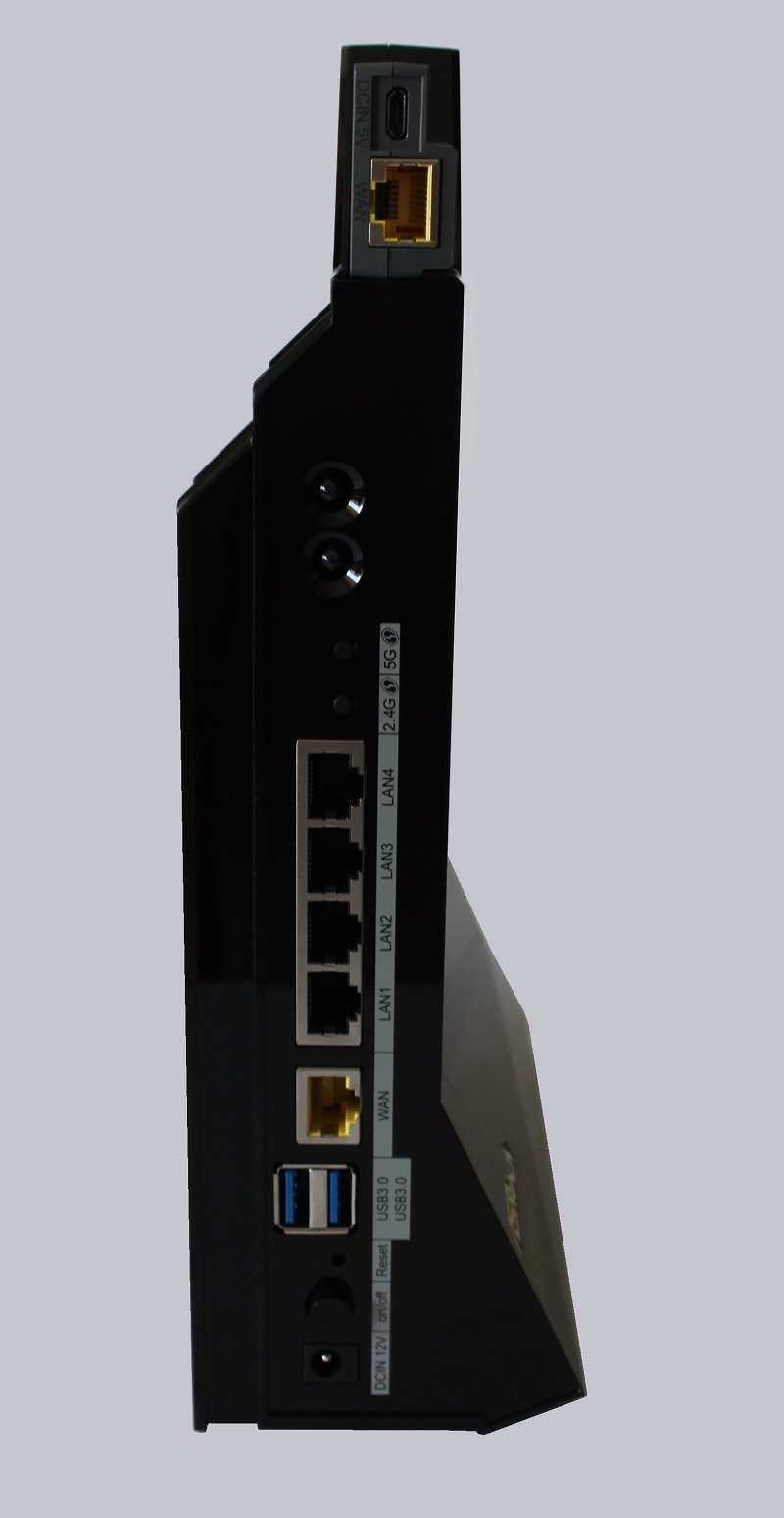

| Connections | 1x RJ45 10/100/1000 WAN Port DHCP, Static IP, PPPoE, PPTP, L2TP 4x RJ45 10/100/1000 LAN Ports 2x USB 3.0 Ports for USB Storage / Printer Server |
| Buttons | Power on / off 2.4 G WLAN WPS 5G WLAN WPS Reset |
| Wireless | Beamforming with eight internal WLAN High Performance Antennas Guest Wireless Networks (Up to 6 additional) 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac Dual-Band, 2.4 GHz 800 Mbps, 5 GHz 1733 Mbps WDS Modi Access Point, Repeater and Router |
| Security | 64, 128 Bit WEP WPA, WPA2 SPI Firewall, NAT |
| Miscellaneous | Easy Setup Memory 256 MB Flash, 512 MB DRAM IPv4, IPv6 Support Parental Control Self-healing Gaming Boost MU-MIMO IOT support – IR learning & remote control ASRock Router APP H2R (HDMI 2 in 1 Router) Power Source Input: 100-240V~ 50/60Hz 0.9A max, Output: 12Vdc / 3A Operating temperature 0°C bis 40°C (32F bis 104F) Operating humidity 90% maximum relative humidity, noncondensing |
ASRock G10 gaming router layout, design and features …
