The technical data …
| Manufacturer | Asus |
| Description | Xonar Essence STX II 7.1 |
| Dimensions | 168 x 107 mm (WxD) |
| Weight | 699 gram |
| Chipset | ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit) |
| Interface | PCIe |
| Input | 1x Front-Panel-Header (Pins) 1x Line-In/Mic (6.3 mm jack) 1x Molex 4 Pin power supply |
| Output | 1x Cinch FrontR 1x Cinch FrontL 1x Cinch SideR 1x Cinch SideL 1x Cinch Center 1x Cinch Woofer 1x Cinch RearR 1x Cinch RearL 1x 7.1 card connection (Pins) 1x Speaker/Headset (6.3 mm jack) 1x Cinch (S/PDIF-Toslink Combo jack) |
| Various | Signal to noise ratio 124dB Headset supports up to 600 Ohm Premium-TCXO-clock Hi-Fi LDO-regulator (Low-Dropout) changeables MUSES 8920- und MUSES 8820-op amps DAC TI Bur-Brown PCM1792A Dolby Technologies: Dolby Digital Live/Dolby headset / Dolby Virtual Speaker / Dolby Pro-Logic II PCM 44.1 KHz to PCM 192 KHz |

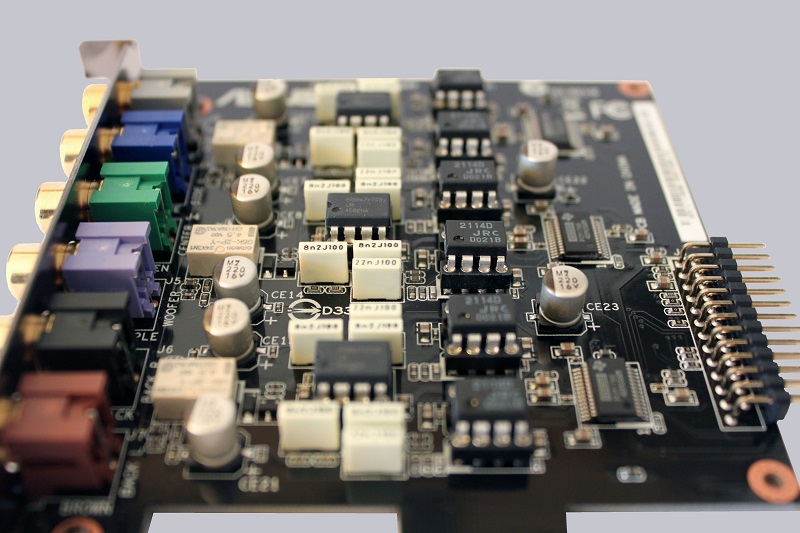

Asus Essence STX II sound card Layout, design and features …
