The technical data …
| Manufacturer | Cooler Master |
| Description | Reactor Gold 750 |
| Product number | MPY-7501-AFAAG-RE |
| PFC | Active PFC (>0,95 typical) |
| Input voltage | 100-240 VAC |
| Input frequency | 50-60 Hz |
| Dimensions | 160 x 150 x 86mm (LxBxH) |
| Weight | 2,24 kg |
| Fan | 120mm, pressure optimized, LDB bearing |
| Protection circuits | OVP, OPP, UVP, SCP, OTP |
| ATX version | ATX 12V V2.31 |
| Connector | ATX 24 pin, length 500mm – 1x CPU 12V 4+4 Pin, length 600mm – 1x SATA, length 760mm – 8x Molex 4 Pin, length 750mm – 6x Floppy 4 Pin, on the same cable as Molex connector – 1x PCI-e 6+2 pin, length 500mm – 4x |
| Standby consumption | <0.5W |
| Efficiency class | 80 Plus Gold |
| Operating temperature | 0-45°C |
| MTBF | >100 000 hours |
| Guarantee | 5 years |

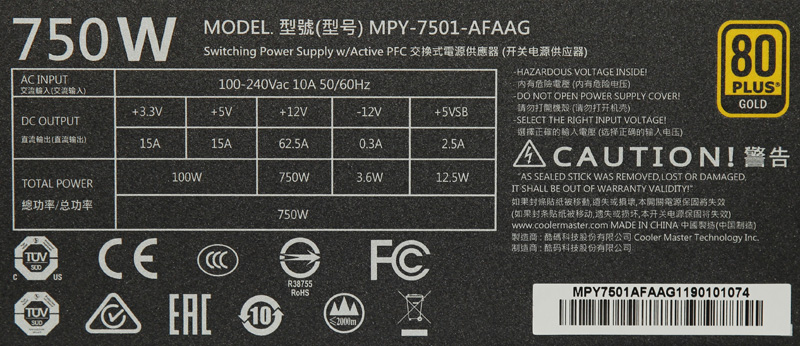

Cooler Master has decided to use a single 12V rail for the electrical design to avoid possible voltage differences with several 12V rails, as shown in the following picture of the rating plate.
