The technical data …
| Manufacturer | Cooler Master |
| Description | XG Plus 650 Platinum |
| Product number | MPG-6501-AFBAP |
| Form factor | ATX |
| Input voltage | 100-240 VAC |
| Input frequency | 50-60 Hz |
| Dimensions | 160x 150 x 86mm (LxWxH) |
| Fan | Dimensions: 135 x 25 x 135 mm Speed: 2500 rpm |
| Protection circuits | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| Plugs | 1x 20+4 pin cable (one connector, 650mm) 1x EPS 4+4 pin cable (one split connector, 650mm) 1x EPS 8 pin cable (one connector, 650mm) 2x PCIe 6+2 pin cable (two connectors, 550 + 120mm) 2x SATA cable (four connectors, 500 + 120 + 120 mm) 1x Molex cable (four connectors, 500 + 120 + 120 mm) 1x USB 10Pin x1 (800mm) |
| Volume | 21 dBA Max |
| Efficiency class | 80 Plus Platinum |
| Warranty | 10 years |

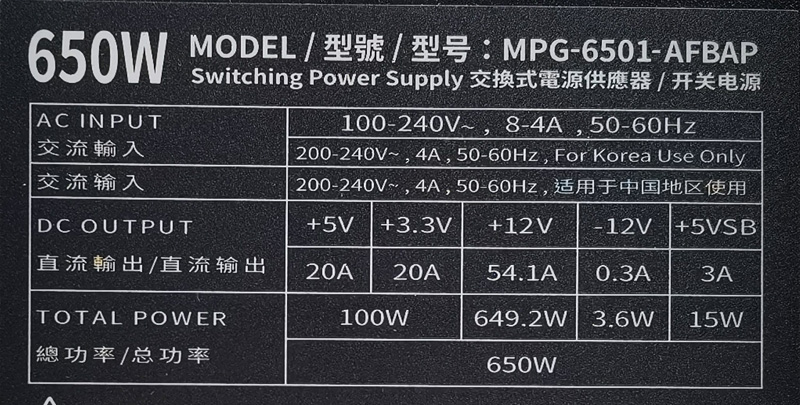

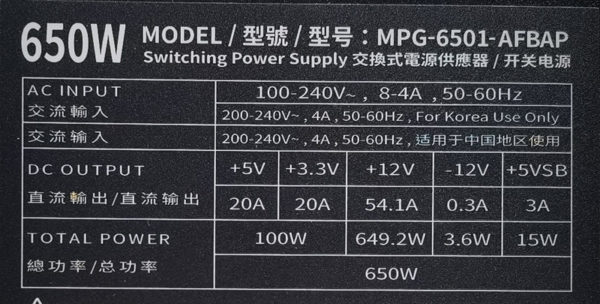

The Cooler Master XG Plus 650 Platinum is a SingleRail power supply that can draw almost all of its power from the one 12V rail at 649.2 Watt.
Cooler Master XG Plus 650 Platinum Layout, design and features …
