Layout, design and features …

The following 360° panoramic view shows the Crucial T705 SSD with all its details.

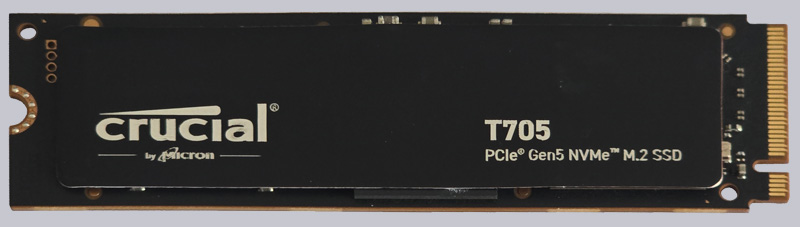

Here you can see the front of the Crucial T705 M.2 NVMe SSD without the cooler.

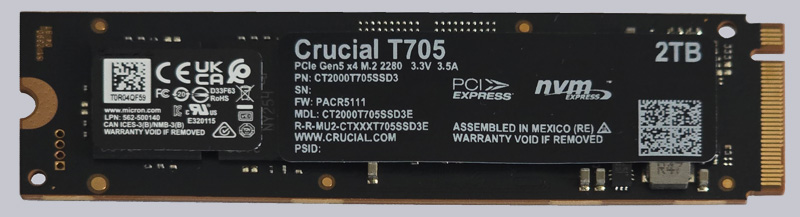

The back of the T705 SSD shows the interface, voltages, serial number and the pre-installed firmware, whereby the T705 was delivered with the PACR5111. The Crucial T705 is equipped with the Phison PS5026-E26 controller, LPDDR4-4266 SLC cache and Micron 232 layer 3D TLC NAND devices. We have already explained the differences between QLC, TLC, SLC and MLC extensively in previous Practical testings, such as the Crucial SSDs.

As we would like to provide more information and practical experience with the M.2 NVMe SSDs, we have also included a Practical testing page.

Crucial T705 2TB M.2 NVMe SSD Practical testing …
