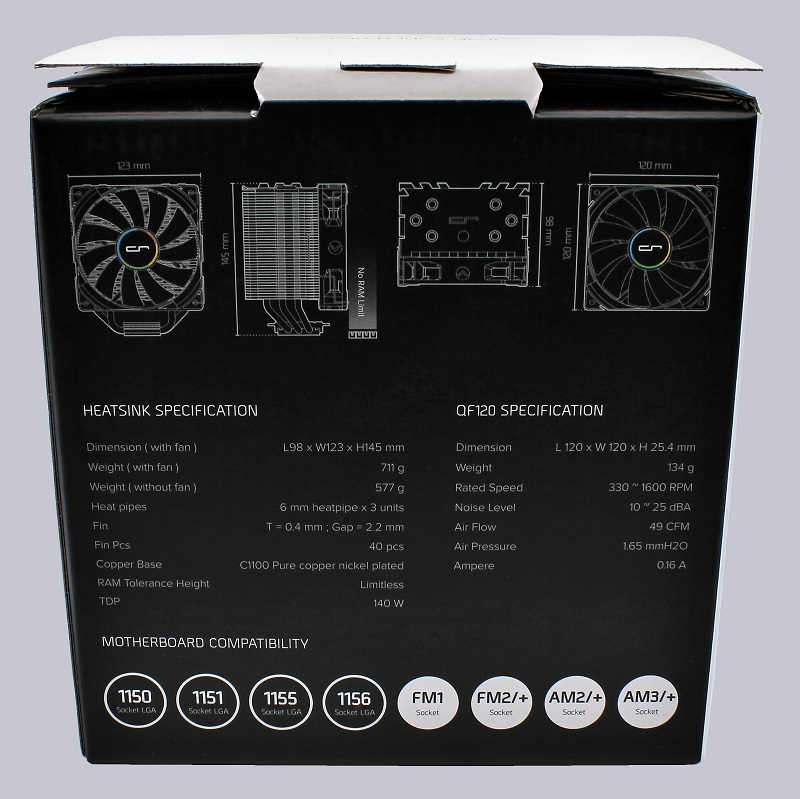

The technical specifications of the Cryorig H7 …
| Manufacturer | Cryorig |
| Model | H7 |
| Product number | CR-H7A |
| Dimensions cooler | 145 x 123 x 98 mm (HxWxD) |
| Dimensions fan | 120 x 120 x 25 mm (HxWxD) |
| Fan speed | 330 – 1600 rpm |
| Airflow | 83.25 m³/h – 49 CFM |
| Air pressure | 1.65 mmH²O |
| Volume | 10-25 dBA | Heatpipes | 3x6mm double-sided |
| Heatsink | 40 aluminum fins, 0.4mm thick, 2.2mm distance |
| Current consumption | 12 V / 0.16 A |
| Connection | 4 Pin PWM |
| Weight | 711g |
| Socket compatibility | Intel 1150, 1151, 1155, 1156; AMD FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+ |
| TDP | 140 W |
| Warranty | 3 years |

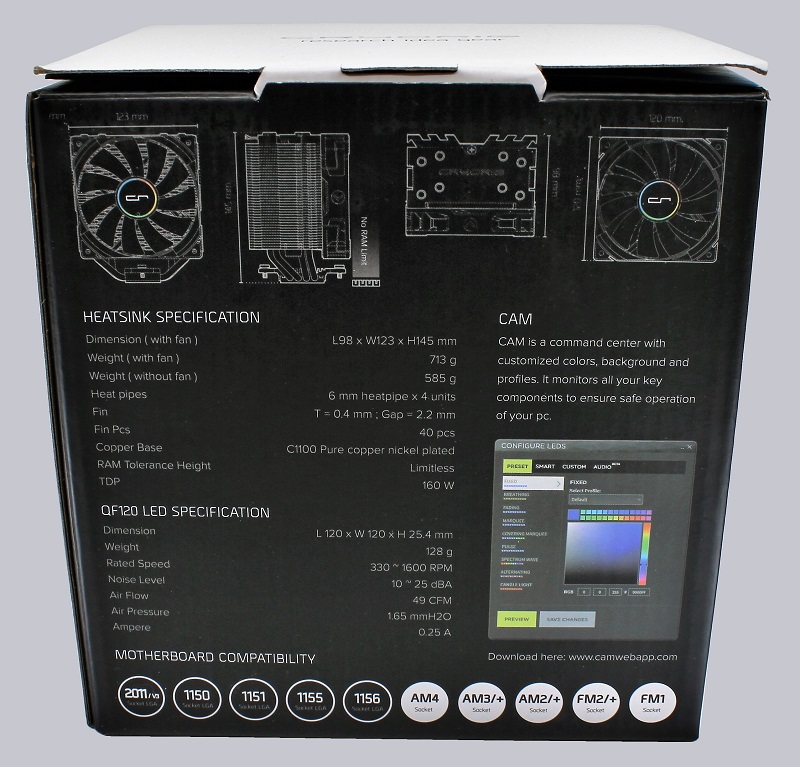

The technical specifications of the Cryorig H7 Quad Lumi …
| Manufacturer | Cryorig |
| Model | H7 |
| Product number | CR-H7QLA |
| Dimensions cooler | 145 x 123 x 98 mm (HxWxD) |
| Dimensions fan | 120 x 120 x 25 mm (HxWxD) |
| Fan speed | 330 – 1600 rpm |
| Airflow | 83.25 m³/h – 49 CFM |
| Air pressure | 1.65 mmH²O |
| Volume | 10-25 dBA | Heatpipes | 4x6mm double-sided |
| Heatsink | 40 aluminum fins, 0.4mm thick, 2.2mm distance |
| Current consumption | 12 V / 0.25 A |
| Connection | 4 Pin PWM + USB |
| Weight | 713g |
| Socket compatibility | Intel 1150, 1151, 1155, 1156, 2011v3; AMD FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4 |
| TDP | 160 W |
| Warranty | 3 years |

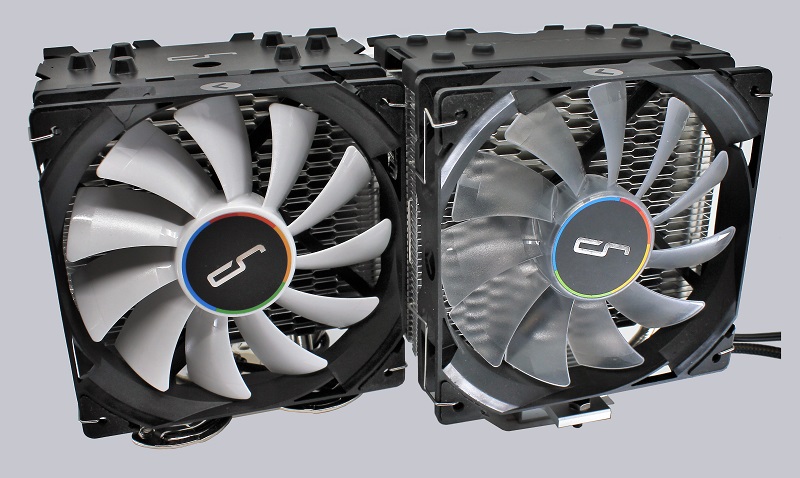

While the H7 and the H7 Quad Lumi are similar in almost all features, apart from the RGB lighting, of course, there is one crucial difference: The H7 has only 3 heatpipes, the H7 Quad Lumi 4.
Cryorig H7 / H7 Quad Lumi construction, design and features …
