The technical data …
| Manufacturer | Eizo |
| Description | EV3240X-BK (black) EV3240X-WT (white) |
| Dimensions | 712 mm x 427 (622) mm x 242 (251) mm (WxHxD) |
| Color | Black |
| Weight | 9.40 kg (without stand 6.7 kg) |
| Panel | IPS with matt surface; 31.5 inch / 80 cm, 16:9 aspect ratio, Maximum resolution 4K/UHD 3840×2160 @ 60 Hz, Brightness 350 cd/m² typical, Contrast ratio, typically 2000:1, Pixel pitch 0.182 mm, pixel density 140ppi Response time (MPRT) 5 ms , 16.7 million colors, HDCP |
| Field of vision | horizontal/vertical: 178°/178° |

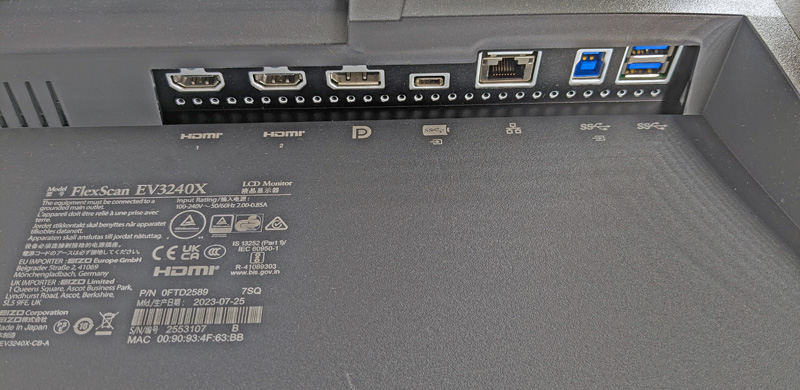

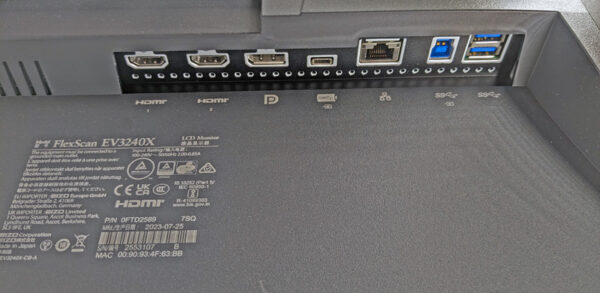

| Connection signal inputs | 2x HDMI (HDCP 1.4/2.3), 1x DisplayPort (HDCP 1.3/2.3), 1x USB-C (DisplayPort Alt Mode, HDCP 1.3/2.3) |
| Connection other | 1x LAN/RJ45 (1000BASE-T), 1 x type C (DisplayPort Alt Mode, power supply 94 W max.), 1 x type B, 1 x type C (charging function with 15 watts), 3 x type A, 2 x 3.5 mm stereo jack plug (headphones, line out) |
| Power consumption | typically 18 watts, maximum 196 watts (at maximum brightness and operation of all signal and USB connections), Standby 0.35 watts, 0 watts when switched off |
| Energy efficiency class | D (21kWh/1000h) |
| Miscellaneous | Adjustable in height, swivel, tilt, Vesa mount 100 x 100 mm, Speaker 2 x 2 W, Kensington lock, Flicker Free, Blue light reduction, Tilt 35° upwards, 5° downwards, Rotate 90° (clockwise), Height adjustable 195 mm |
| Other features | USB-C docking, KVM switch, DICOM sound value characteristic, Suitable for RadiCS application class(es) VIII, Auto EcoView – brightness control, Flicker-free, Picture-by-Picture, Automatic signal input detection, Integrated power supply |
Eizo FlexScan EV3240X Layout, design and features …
