Layout, design and features …
The PCIe 3.0 x4 card can of course also be used in a PCIe 4.0 x4 slot or higher, but will not benefit from the higher speed.

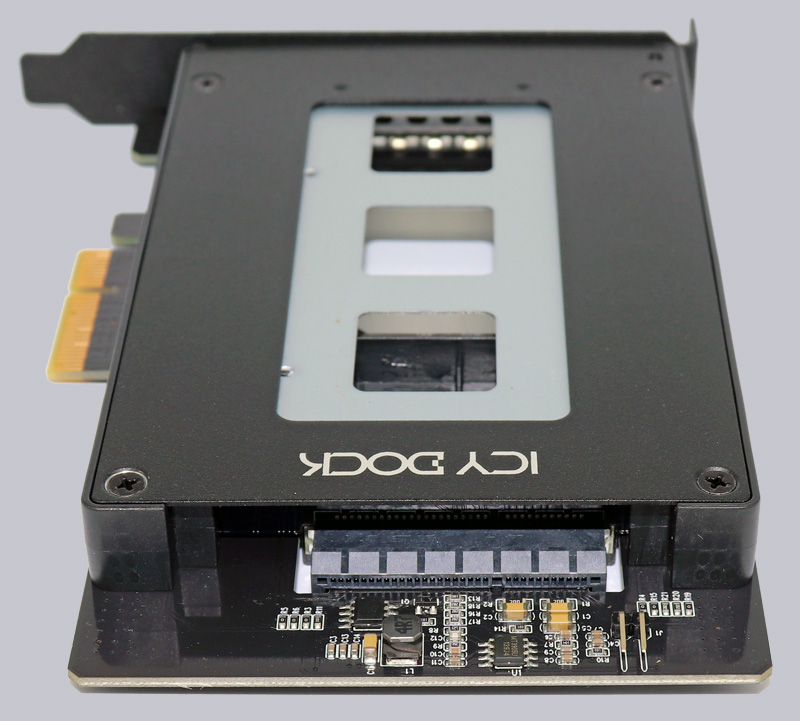

In the rear area there are also status LEDs and a 2-pin connection if the status LED is to be connected externally.

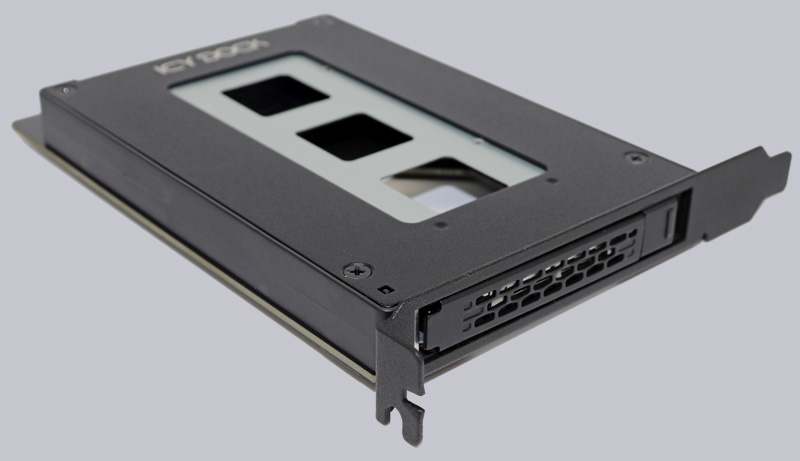

Here you can see the PCIe expansion card made of metal with a black look.

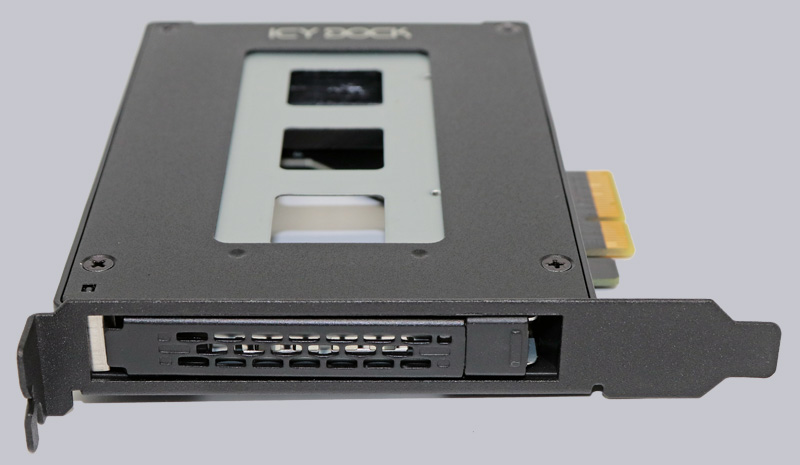

If you looked closely, you could immediately see the U.2 NVMe removable frame, which is ejected by pressing the small lever and then pulled out of the PCIe card to install the U.2 or U.3 SSD.
Overall, the workmanship is very high quality and makes a very stable impression.
Now we come to the installation of the removable frame.
Icy Dock MB111VP-B U.2/U.3 NVMe PCIe card Installation …
