We have tested the Icy Dock ToughArmor MB111VP-B removable frame with a Crucial T700 1TB M.2 PCIe 5.0 NVMe SSD on various systems, most recently here on the latest ASRock Z790 Riptide WiFi Intel LGA1700 DDR5 ATX motherboard, with which we then also performed the benchmarks.
After the uncomplicated installation, we now check whether the MB111VP-B achieves the specified SSD speed. To do this, we first selected the AS SSD benchmark and then the CrystalDiskMark and a SiSoftware Sandra benchmark (download).
The following PC setup was used as the test system:
| Intel Motherboard | ASRock Z790 Riptide WiFi |
| CPU | Intel Core i9-14900K |
| Cooler | Arctic Liquid Freezer II 420 |
| Thermal Compound | ARCTIC MX6 |
| Graphics card | ASRock Radeon RX 5700 Challenger D 8G OC |
| SSD | Crucial MX500 SSD |
| Test SSD | Crucial T700 1TB M.2 PCIe 5.0 NVMe SSD |
| PSU | Cooler Master Silent Pro M 600W |
| Case | Cooler Master Testbench v1.0 |
| Operating System | Windows 11 Pro 64 Bit |

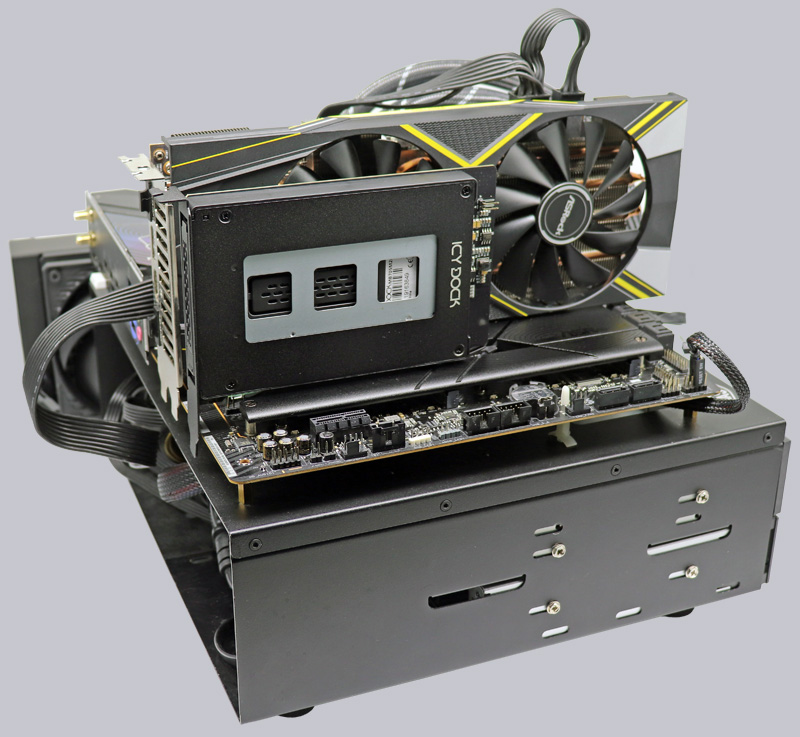

We have inserted the NVMe SSD with a U.2 adapter directly into the Icy Dock ToughArmor MB111VP-B PCIe removable frame, because measurements of the NMVe SSD directly in the M.2 slot of the motherboard would not be sufficient for a comparison, since we are using a PCIe 5.0 SSD in a PCIe 4.0 slot card and this would of course be faster in a PCIe 5.0 slot.

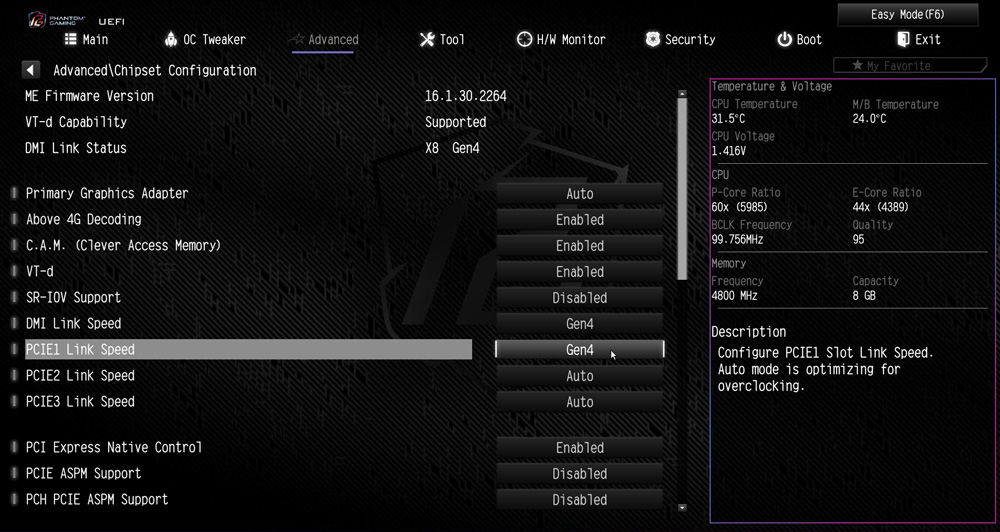

It can also happen that the PCIe 4.0 expansion card with a PCIe 5.0 NVMe SSD is not recognized correctly if it is inserted into a PCIe 5.0 slot. This can be solved by adjusting the PCIe slot connection in the UEFI by changing the respective slot from Gen5 to Gen4.

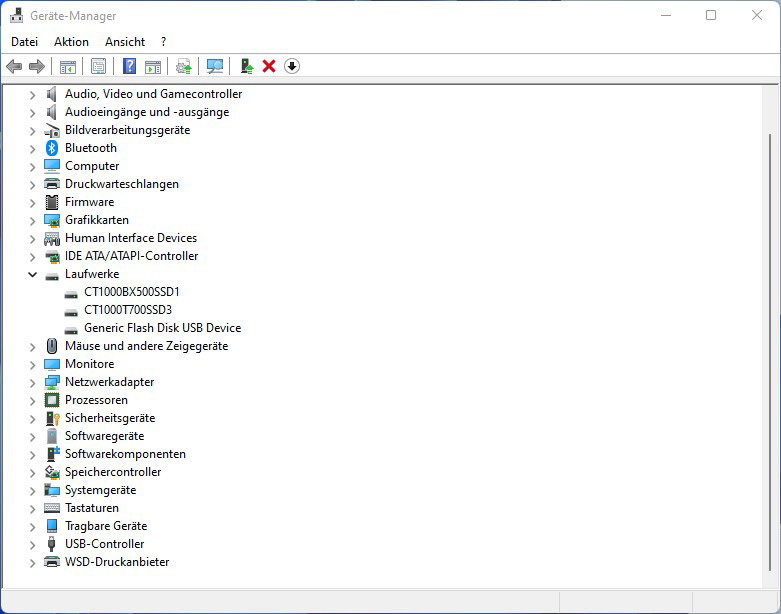

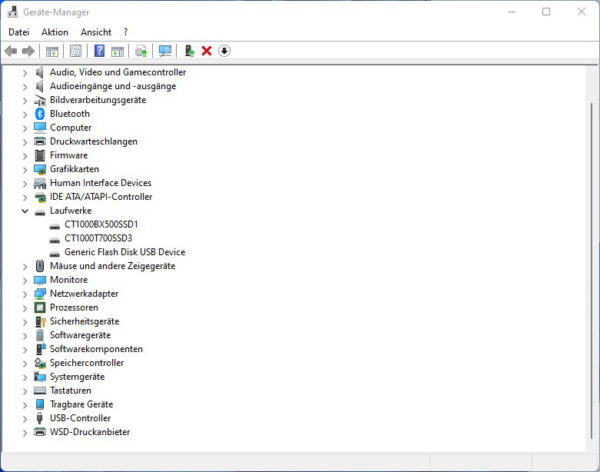

The U.2/U.3 or M.2 SSD should then be correctly recognized and displayed via an adapter, both in the BIOS or UEFI, as well as in the Windows Device Manager.
CrystalDiskInfo …

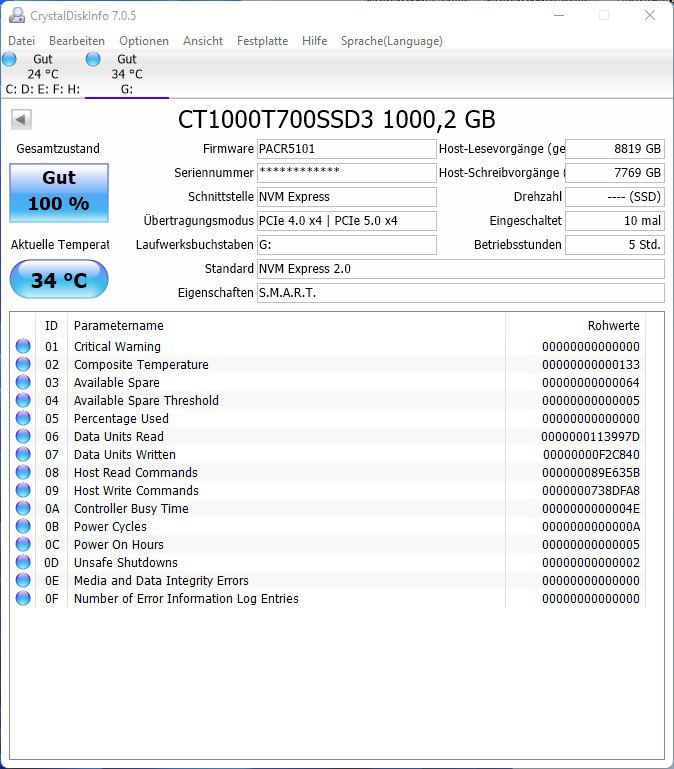

Before the benchmarks, we show a screenshot with the CrystalDiskInfo SSD and hard disk information software, which quickly shows us the transfer mode used with PCIe 4.0 x4. Even if the SSD supports PCIe 5.0 x4, it can of course only be connected at full speed in a suitable PCIe 5.0 x4 slot.
AS SSD Benchmark …

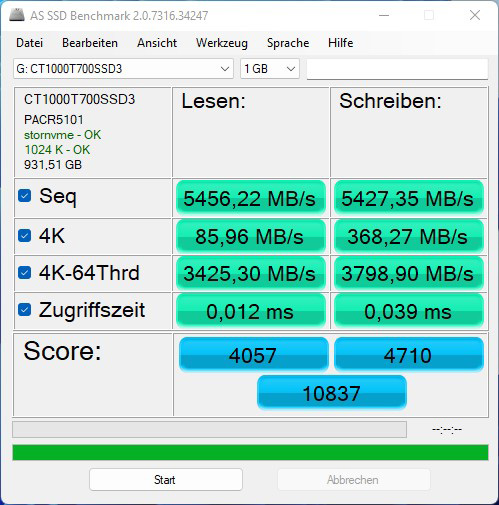

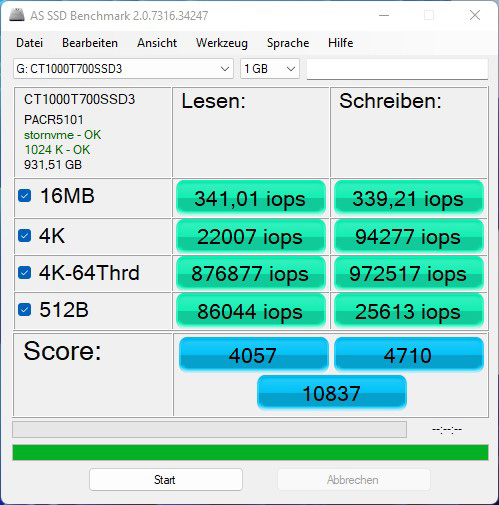

Let’s start with the AS SSD benchmark results, where we achieve an extremely good 5456.22 read performance and an equally good write performance of 5427.35 MB/s.
Here you can see the values in IOPS (Input/Output Per Second) again.
CrystalDiskMark …

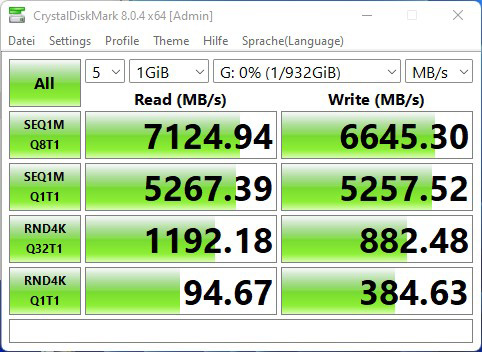

As you can see from the CrystalDiskMark results, they are pretty much exactly at the maximum possible limit of the PCIe Gen4 connection after the overhead.
SiSoftware Sandra Benchmark …

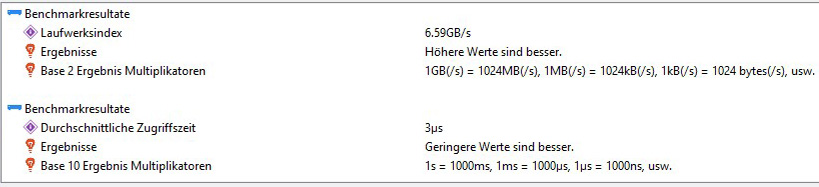

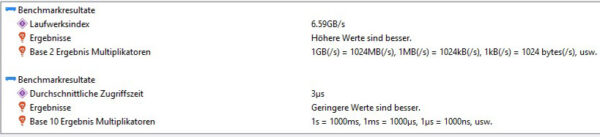

The SiSoftware Sandra benchmark results also show a very high 6.59Gb/s, confirming the previous measurements.
Overall, the MB111VP-B U.2/U.3 NVMe PCIe 4.0 x4 card achieves the promised speed even with the EZConvert MB705M2P-B M.2 to U.2 adapter.
NVMe M.2, U.2, U.3 SSD speed …
For example, the Crucial T700 NVMe SSD requires PCIe Gen5 x4, i.e. a PCIe 5.0 slot with at least x4 lanes, or an M.2 slot that provides a bandwidth of up to 11700 MB/s. ASRock’s current motherboards offer the Blazing M.2 slot with up to 128Gb/s. If “only” a PCIe 4.0 x4 slot is available, a maximum of 7877 MB/s is supported, so that this Gen5 SSD is already throttled in a Gen4 slot. The connection looks similar with U.2 or U.3, whereby U.2 supports PCIe 3.0 x4 and U.3 (SFF-TA-1001 SSD) currently supports PCIe 4.0 x4. Both have an SFF-8639 connector, which looks like a SATA connector but also has PCIe lanes.
Here is a small listing of the PCIe speeds:
PCIe 2.0 x1 500 MB/s
PCIe 2.0 x2 1000 MB/s
PCIe 2.0 x4 2000 MB/s
PCIe 2.0 x8 4000 MB/s
PCIe 2.0 x16 8000 MB/s
PCIe 3.0 x1 985 MB/s
PCIe 3.0 x2 1969 MB/s
PCIe 3.0 x4 3938 MB/s (U.2)
PCIe 3.0 x8 7877 MB/s
PCIe 3.0 x16 15754 MB/s
PCIe 4.0 x1 1969 MB/s
PCIe 4.0 x2 3938 MB/s
PCIe 4.0 x4 7877 MB/s (U.3)
PCIe 4.0 x8 15754 MB/s
PCIe 4.0 x16 31508 MB/s
PCIe 5.0 x1 3938 MB/s
PCIe 5.0 x2 7877 MB/s
PCIe 5.0 x4 15754 MB/s
PCIe 5.0 x8 31508 MB/s
PCIe 5.0 x16 63016 MB/s
The PCIe 6.0 x1 standard starts at 7877 MB/s and the PCIe 7.0 x1 standard starts at 15754 MB/s (all figures are maximum values without protocol overhead).
Before we come to the result and general impression, we would like to check one more point and that is the SSD temperature in the removable frame.
SSD heat development …

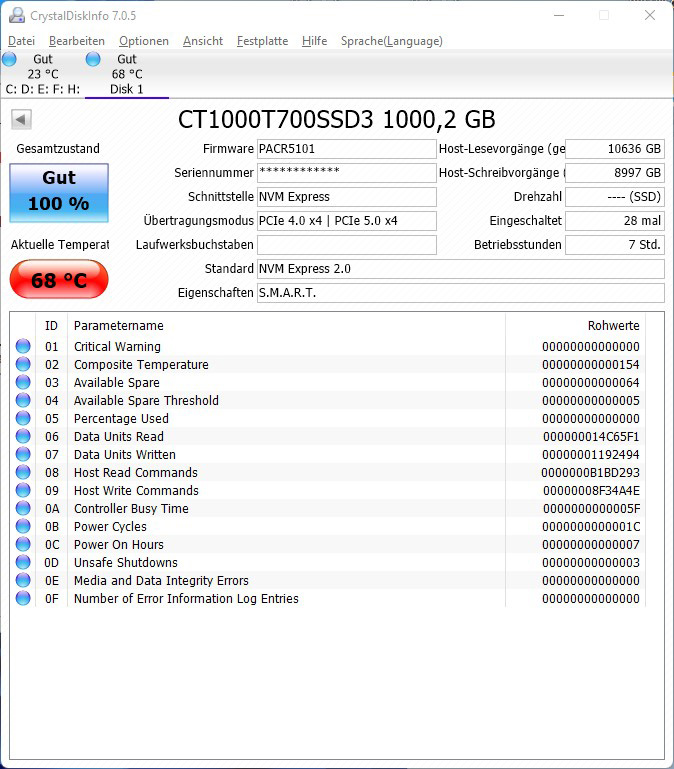

In the Icy Dock removable frame, the temperature rose to just 68°C via the heat dissipation of the EZConvert adapter and that is perfectly fine for this M.2 SSD, which can reach up to approx. 90°C.
