The technical data of the Icy Dock Drive Bay MB830SP-B …

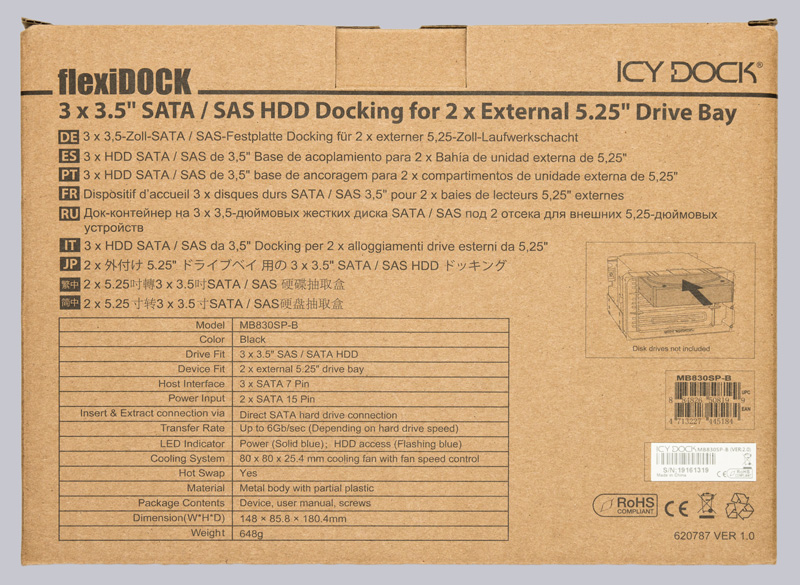

Let’s first take a look at the specifications of the Icy Dock Drive Bay MB830SP-B. The most important data can also be found on the product packaging.
Manufacturer | Icy Dock |
Model Number | MB830SP-B |
Supported drives | 3.5″ (2.5″ with converter) SATA/SAS HDD/SSD |
Number of supported drives | max. 3 drives |
Drive Bay | 2x external 5.25″ drive bay |
Host Interface | 3x SATA 7pin |
Power Input | 2x 15 pin SATA power connector |
Support HDD Capacity | No Limitation |
Hot-Swap compatible | yes |
Drive Cooling | 80 x 80 x 25mm (HxWxD) |
Fan power supply | by the Drive Bay |
Fan control | via an adjusting wheel on the front side |
Display for HDD activity | 3x blue LED on front side |
Material | Metal and plastic |
product dimensions | 145.8 x 85.8 x 180.4mm (HxWxD) |
Product Weight | 663g netto (994g incl. packing) |
Compliance | CE, RoHS, REACH |
Humidity | 5 – 65% |
Operating Temperature | 0 – 60°C |
Warranty | 3 years |
And now the data of the HDD/SSD converter.
The technical data of the HDD/SSD converter MB882SP-1S-3B …

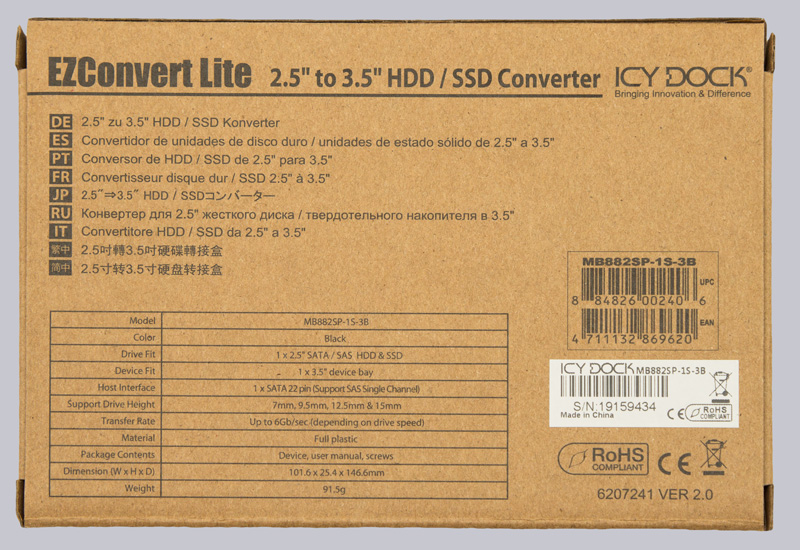

Also here we find the most important technical data again on the product packaging.
Manufacturer | Icy Dock |
Model Number | MB882SP-1S-3B |
Support Drive Size | 1x 2.5″ SATA/SAS HDD/SSD |
Drive Bay | 3.5″ Bay |
Host Interface | SATA / SAS 7pin |
Power Input | 15 pin SATA power connector |
Support HDD Capacity | No Limitation |
max. drive height | 15mm |
Hot-Swap compatible | yes |
Material | Plastic |
product dimensions | 146.4 x 101.6 x 25.4mm (HxWxD) |
Product Weight | 86g netto (128g incl. packing) |
Compliance | CE, RoHS, REACH |
Humidity | 5 – 65% |
Operating Temperature | 0 – 60°C |
Warranty | 3 years |
Now we come to the functions and features of the Icy Dock Drive Bay and the HDD/SSD converter.
Icy Dock MB882SP-1S-3B and Icy Dock MB830SP-B Layout, design and features …
