The technical data …

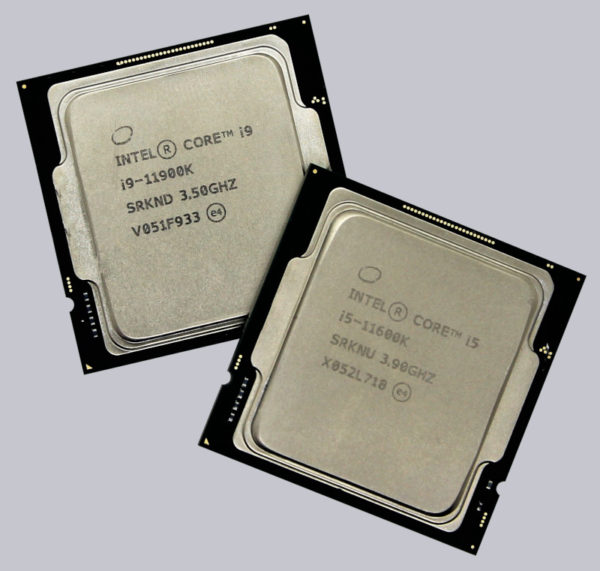

The technical data of the Intel Core i5-11600K …
| Manufacturer | Intel |
| Description | Core i5-11600K |
| Plattform | Desktop (Mainstream) |
| Model number | CM8070804491414 |
| Socket | LGA1200 |
| Number of cores | 6 |
| Number of threads | 12 |
| Base clock rate | 3.90 GHz |
| Max. Turbo clock rate | 4.90 GHz | Intel Turbo Boost 2.0 | 4.90 GHz |
| Cache | L2:3MiB / L3:12MiB |
| Bus clock frequency | 8 GT/s |
| multiplier | open |
| Standard power consumption / TDP | 125W |
| Production method | 14nm+++ |
| PCI Express Version | PCIe 4.0 x20 |
| Max. Memory clock frequency | 3200MHz |
| Memory type | DDR4 |
| Max. Number of memory channels | 2 |
| Max. Memory size | 128 GB |
| Max. Memory bandwidth | 50 GB/s |
| Support ECC memory | No |
| Miscellaneous Features | DL Boost Turbo Boost 2.0 (4.90GHz) vPro Hyper-Threading VT-x, VT-d, VT-x EPT Instruction set extensions; Intel 64, SSE4.1, SSE4.2, AVX, AVX2, AVX-512 Idle States EIST Thermal Monitoring IPT, SIPP, GNA 2.0 TDP-down (95W) TDP-down frequency (3.60GHz) |
| Security Features | AES-NI Secure Key OS Guard TXT XD Bit Boot Guard |
The technical data of the Intel Core i9-11900K …
| Manufacturer | Intel |
| Description | Core i9-11900K |
| Plattform | Desktop (Mainstream) |
| Model number | CM8070804400161 |
| Socket | LGA1200 |
| Number of cores | 8 |
| Number of threads | 16 |
| Base clock rate | 3.50 GHz |
| Max. Turbo clock rate | 5.30 GHz | Intel Turbo Boost 3.0 | 5.20 GHz |
| Cache | L2:4MiB / L3:16MiB |
| Bus clock frequency | 8 GT/s |
| Multiplier | open |
| Standard power consumption / TDP | 125W |
| Production method | 14nm+++ |
| PCI Express Version | PCIe 4.0 x20 |
| Max. Memory clock frequency | 3200MHz |
| Memory type | DDR4 |
| Max. Number of memory channels | 2 |
| Max. Memory size | 128 GB |
| Max. Memory bandwidth | 50 GB/s |
| Support ECC memory | No |
| Miscellaneous Features | DL Boost Thermal Velocity Boost (5.30GHz) Turbo Boost Max 3.0 (5.20GHz) Turbo Boost 2.0 (5.10GHz) vPro, Hyper-Threading VT-x, VT-d, VT-x EPT Instruction set extensions; Intel 64, SSE4.1, SSE4.2, AVX, AVX2, AVX-512 Idle States EIST Thermal Monitoring IPT, SIPP, GNA 2.0 TDP-down (95W) TDP-down frequency (3.00GHz) |
| Security Features | AES-NI Secure Key OS Guard TXT XD Bit Boot Guard |
The technical data of the integrated graphics unit …
| Description | Intel UHD-Grafik |
| Model number | 750 |
| Graphics base frequency | 350 MHz |
| Max. dynamic graphics frequency | 1.35 GHz |
| Max. Video memory | 64 GB |
| 4K support | Yes |
| Max. Resolution (HDMI 2.0b) | 4096×2160@60Hz |
| Max. Resolution (DP) | 4096×2304@60Hz |
| Max. Resolution (DisplayPort 1.4a / eDP) | 5120×3200@60Hz |
| Supported 3D standards | DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0 |
| Number of supported displays | 3 |
| Miscellaneous Features | Intel Quick Sync Video; Intel InTru 3D technology; Intel Clear Video HD Technology; H.265 encode/decode VP9 encode/decode AV1 decode HDCP 2.3 |

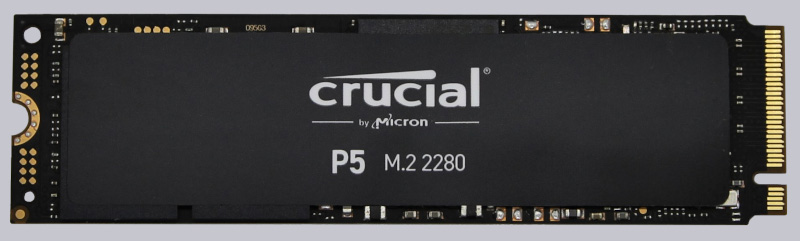

The technical data of the Crucial P5 2TB M.2 NVMe SSD …
| Manufacturer | Crucial |
| Article number | CT2000P5SSD8 |
| Capacity | 2000GB (NAND) |
| Interface | PCIe 3.0 x4 NVMe |
| Cache | 16GB (512M x 32) 2133MHz LPDDR4 DRAM |
| Controller | Micron DM01B2 |
| Flash Typ | Micron 96 Layer 3D TLC NAND – Triple-Level-Cell |
| Size | M.2 2280 (80 x 22 x 3,5mm) |
| Weight | ca. 10 Gramm |
| Speed | Read up to 3400MB/s / write up to 3000MB/s |
| MTBF | 1.8 million hours, 1200 TB total bytes written (TBW), equal to approx. 657 GB per day for 5 years. |
| Miscellaneous | SMART Support – Self-Monitoring and Reporting Technology, TRIM Support, RAIN (Redundant Array of Independent NAND), Dynamic Write Acceleration, APST (NVMe Autonomous Power State Transition), Adaptive Thermal Protection, Active Garbage Collection, Integrated Power Loss Immunity, Multistep Data Integrity Algorithms and Error Correction Code. |

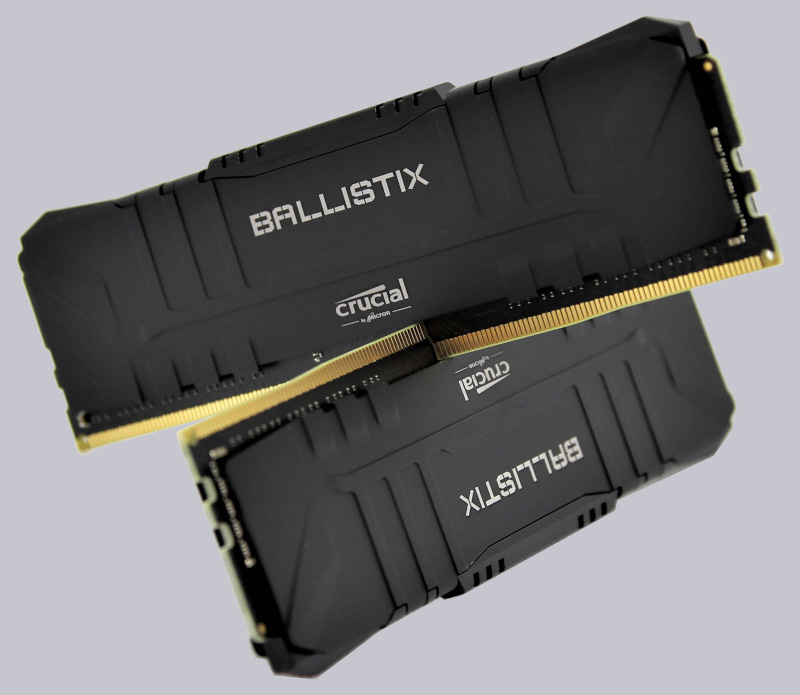

The technical data of the Crucial Ballistix Gaming black 16GB DDR4-3600 RAM modules …
| Manufacturer | Micron |
| Article number | BL2K8G36C16U4B |
| Memory | 2x 8GB Kit (4096MB x2) |
| Size | 288-pin UDIMM |
| Type | DDR4-3600 / PC4-28800 |
| Module Assignment | Single Rank |
| DIMM Type | UNBUFFERED |
| Error correction | NON-ECC |
| Speed | DDR4 3600 |
| Voltage | 1.35 Volt |
| Memory Timing | 16-18-18-38 (CAS-TRCD-TRP-TRAS) CL16 |
| Special features | Intel XMP 2.0 |

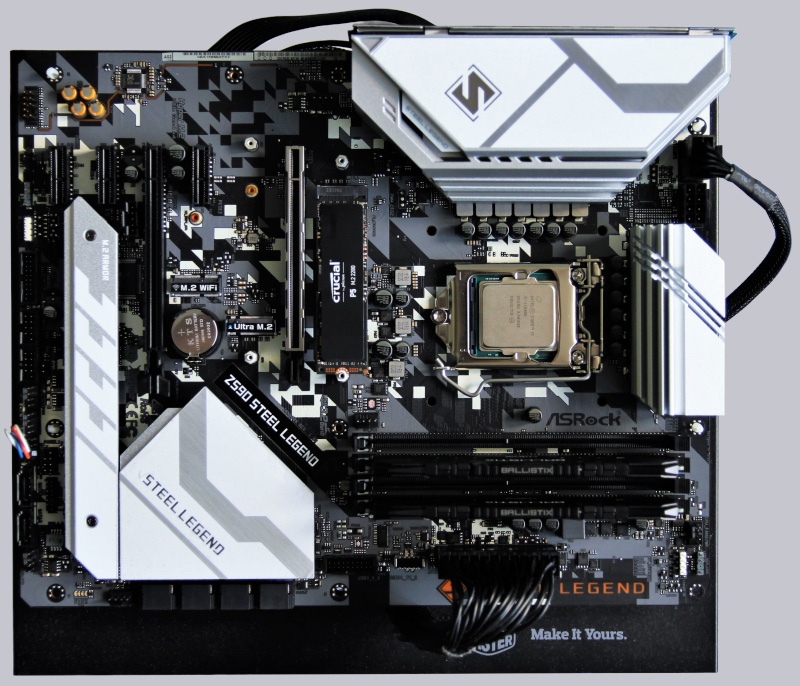

The technical data of the ASRock Z590 Steel Legend mainboard …
| Manufacturer | ASRock |
| Description | Z590 Steel Legend |
| Chipset | Intel Z590 |
| Socket | Intel LGA 1200 |
| RAM | Max. 4x DDR4 DIMM Dual Channel max. 128GB |
| Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 3x PCIe 3.0 x1, 1x M.2/M-Key PCIe 4.0 x4, 2280/2260, 1x M.2/M-Key PCIe 3.0 x4/SATA, 2280/2260, 1x M.2/M-Key PCIe 3.0 x4/SATA, 22110/2280/2260, 1x M.2/E-Key 2230 |
| Connection intern | 1x USB-C 3.2 20Gb/s, 2x USB 3.0 5Gb/s, 4x USB 3.0 ASM1074, 2x USB 2.0 480Mb/s, 4x USB 2.0, 6x SATA 6Gb/s, 1x TPM-Header, 1x Thunderbolt, 1x Speaker |
| Connection extern | 1x HDMI 2.0b, 1x DisplayPort 1.4a, 1x USB-C 3.1 10Gb/s, 1x USB-A 3.1 10Gb/s, 2x USB-A 3.0 5Gb/s, 2x USB-A 2.0 480Mb/s, 1x 2.5GBase-T Realtek RTL8125BG-CG, 5x Jack, 1x Toslink, 1x PS/2 |
| Miscellaneous | ATX 305 mm x 244 mm, 2x 4-Pin RGB +12V, 2x 3-Pin ARGB +5V Lighting, 7x 4-pin Fan, 7.1 Realtek ALC897 7.1 HD Audio, 14 Power Phase Digi Power |
Next we come to the layout, design and features …
