Assembly …

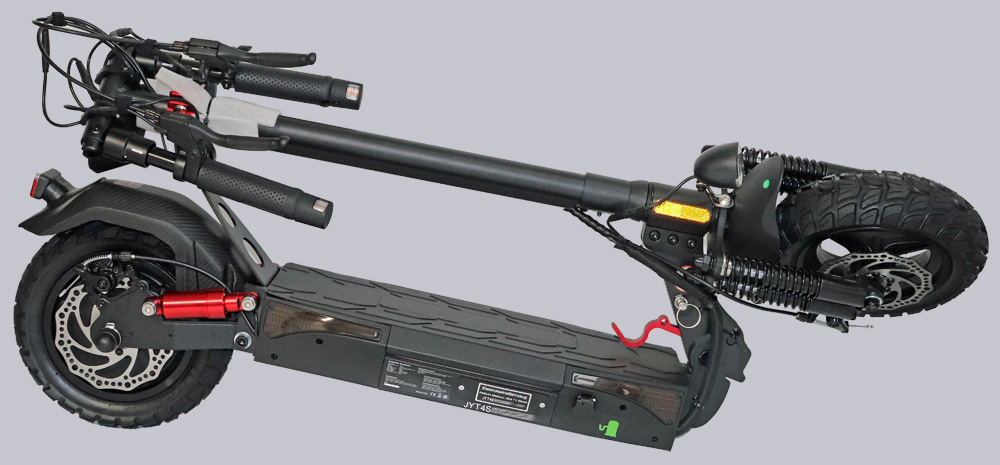

The iScooter T4 is delivered pre-assembled and can be set up in just a few seconds. Simply pull the approx. 25 kg e-scooter out of the box.

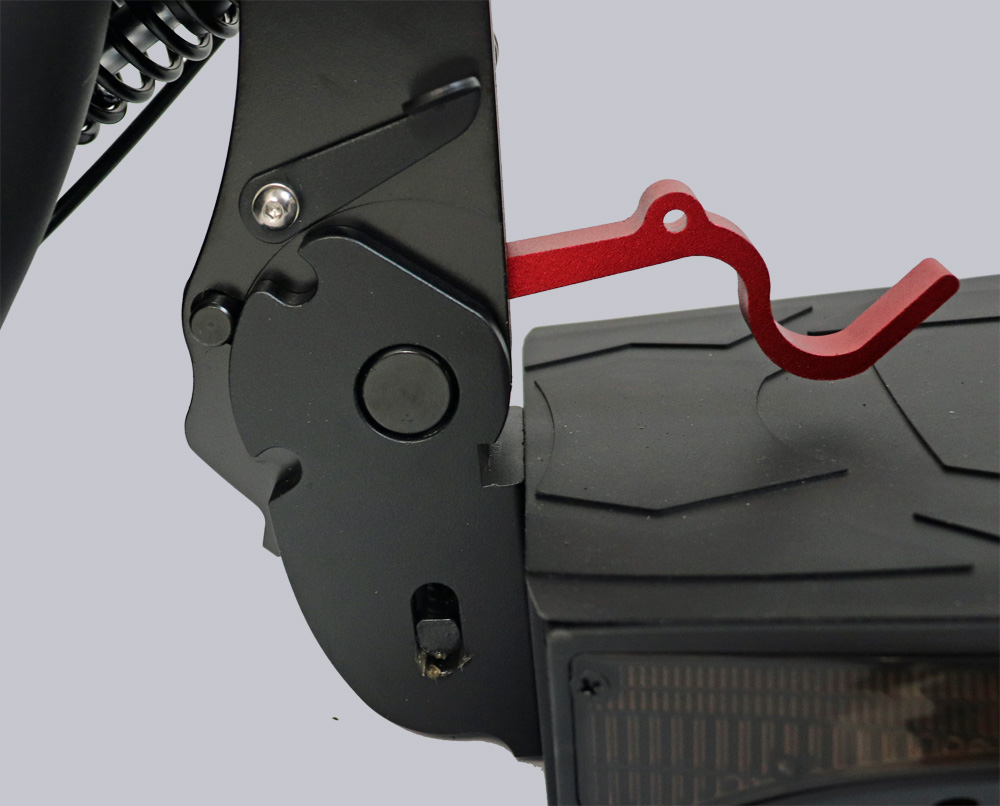

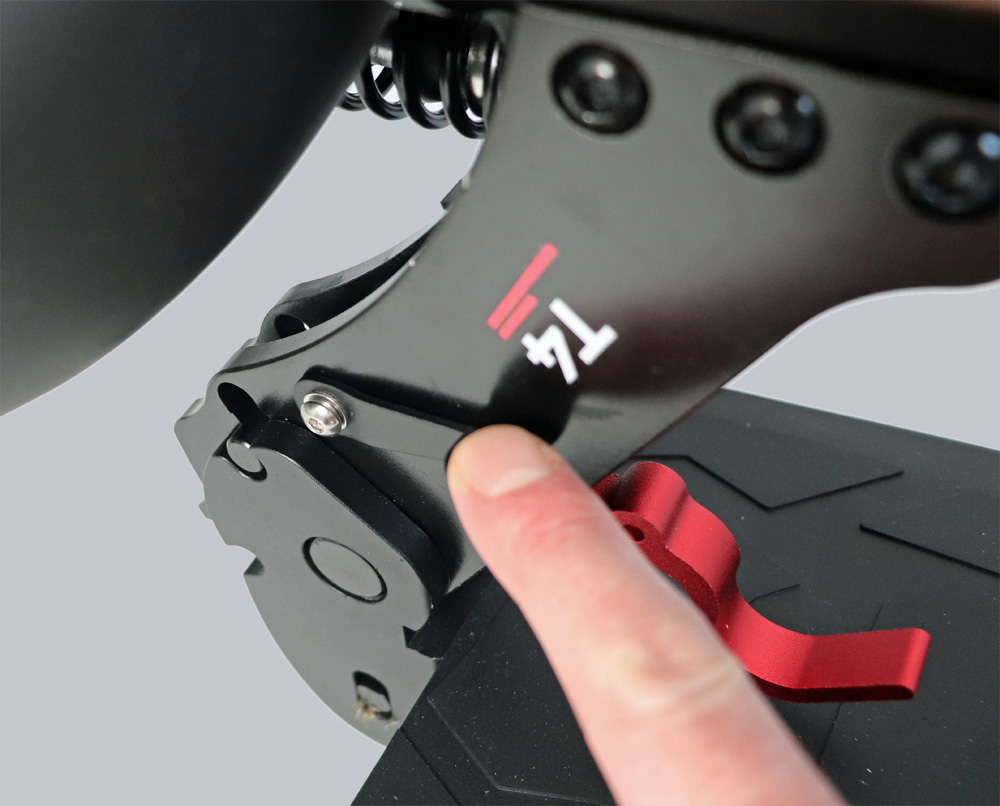

Now press this lever on the side …
… so that the latch releases. The whole thing was built with a spring construction and must hold securely so that it does not accidentally come loose when worn.

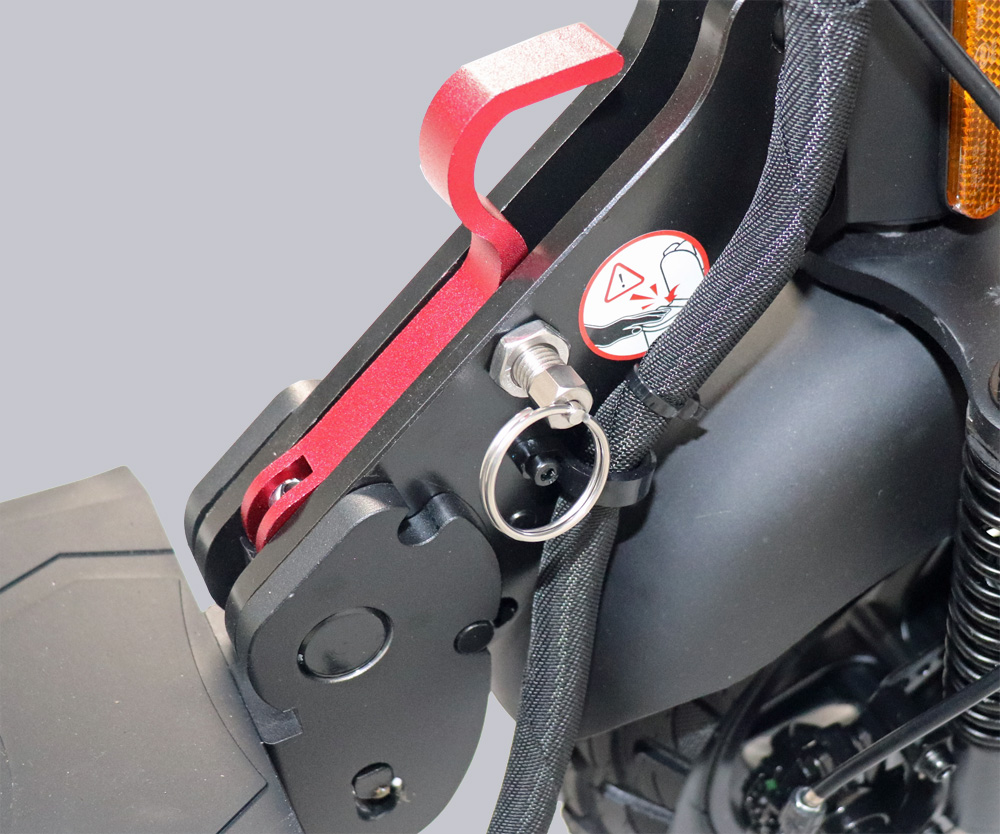

Now fold the red lever all the way to the front, again using a little force, and the locking pin engages in the important lever.

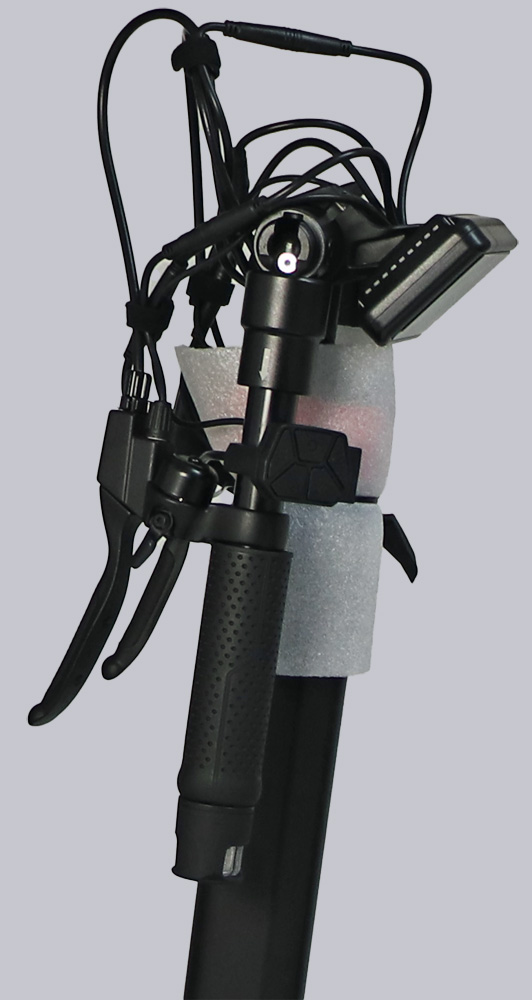

When everything is ready, it should look like this.

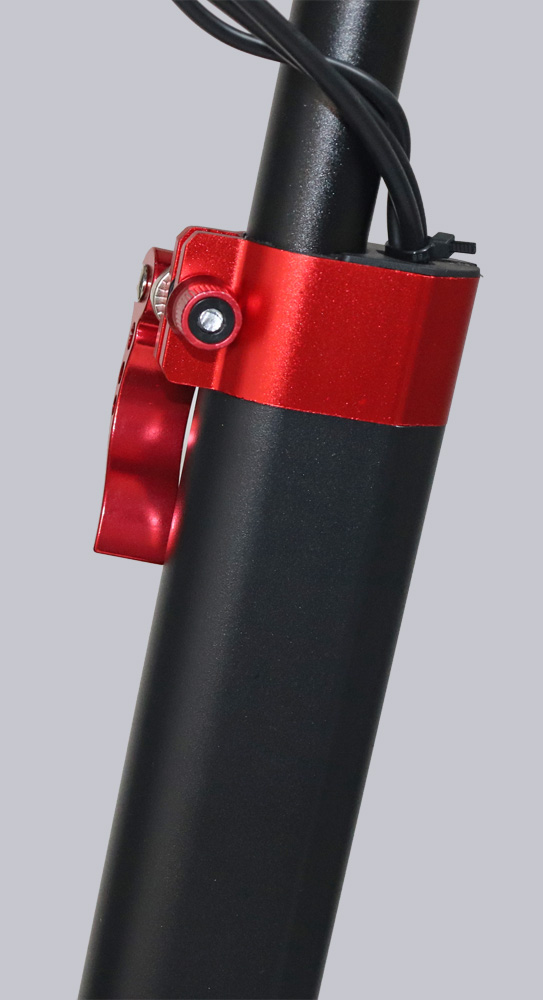

With the upper red lever you can now adjust the handlebar height a little. At this point you can also see the cable routing without any bend protection. It is extremely important that this clamp is really tight, otherwise the handlebars will twist while riding.

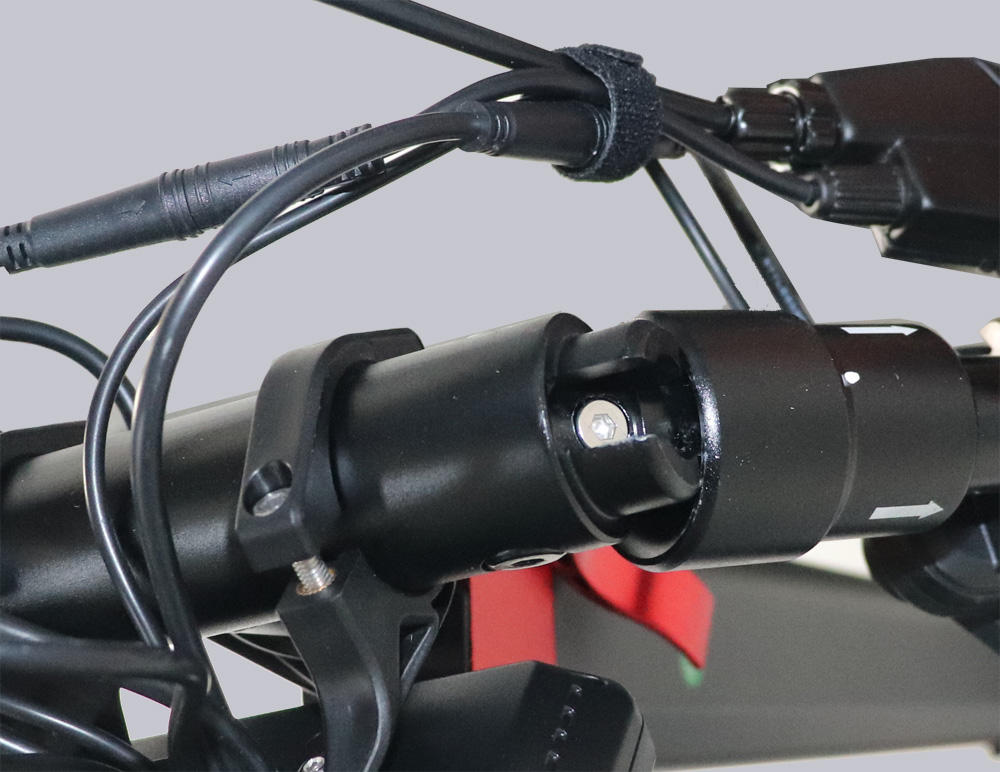

Now unfold the handlebar grips. The instructions say “Cut the straps on the handlebars”, but this does not refer to straps or even cables, but to a cable tie that holds the two handlebar grips together for transportation.

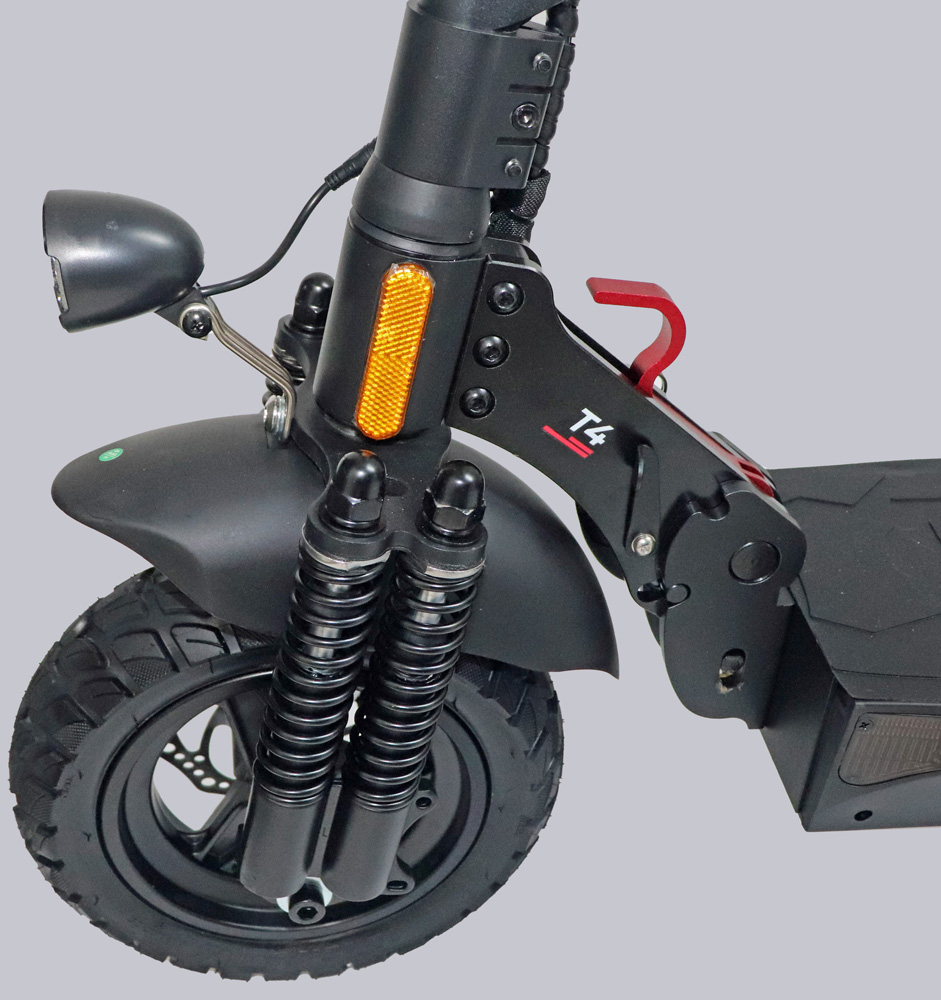

Here you can buy the hinge quite well recognize.
Charging the eScooter battery …

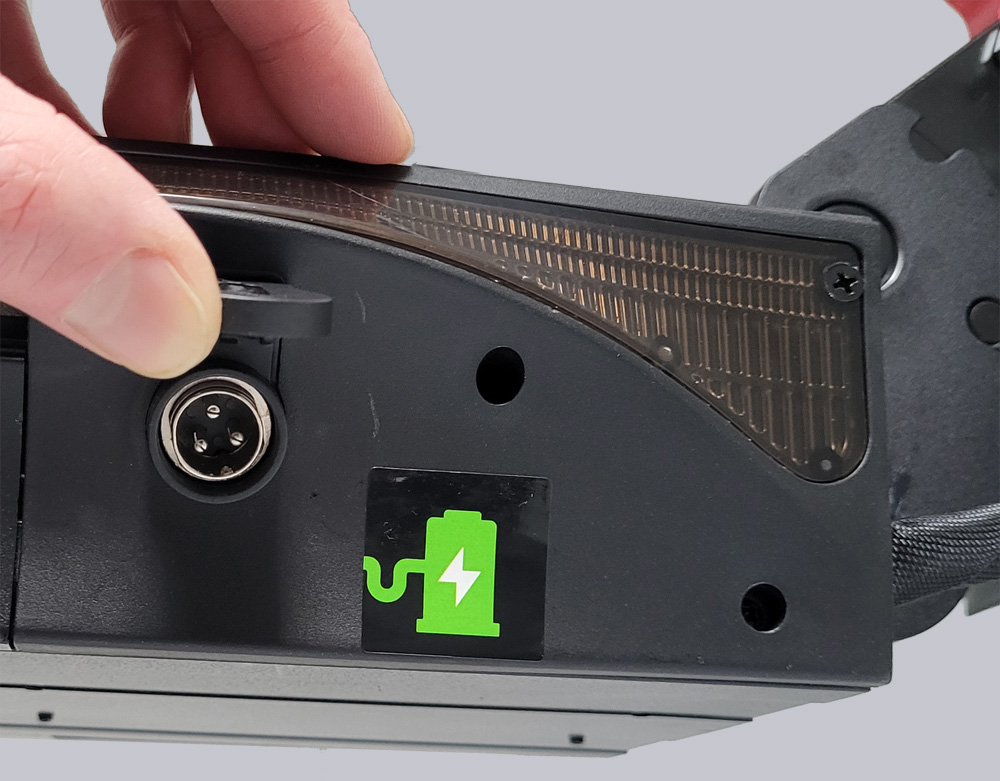

The battery is already pre-charged on delivery. For recharging, there is this 3-pin plug with a 12 mm diameter at the bottom.

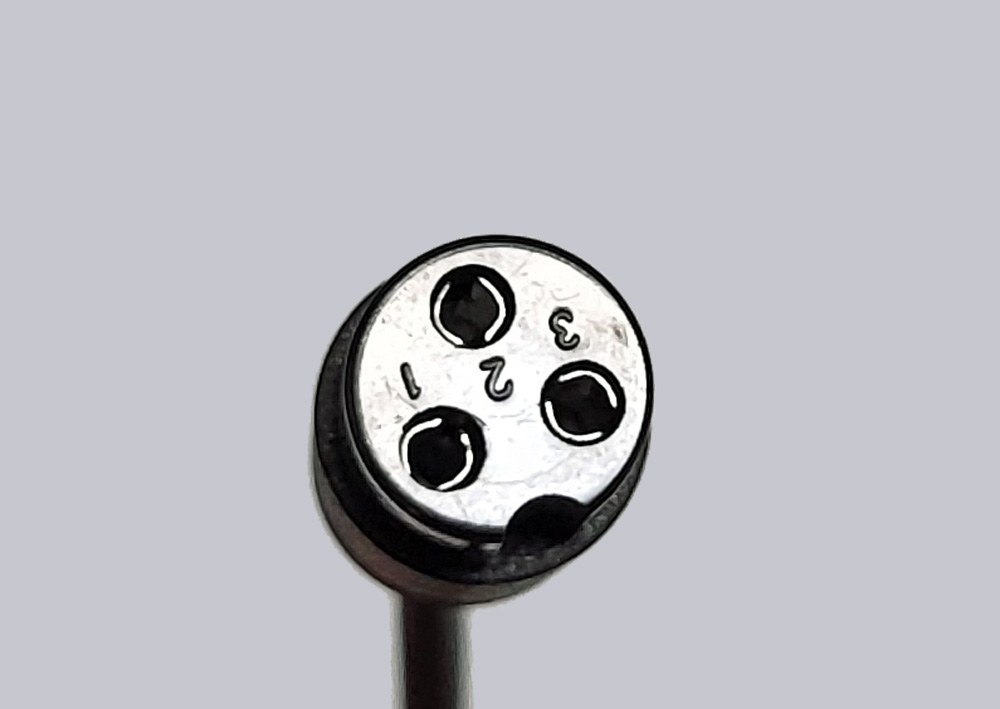

This is where the supplied 54.6V/2A GPO GA26-5462000T charger is connected, which, with its charging power of approx. 109.2W, takes around 5-6 hours to fully charge. To charge from 28% to 80%, for example, it takes just over 2 hours.
