Energy consumption …

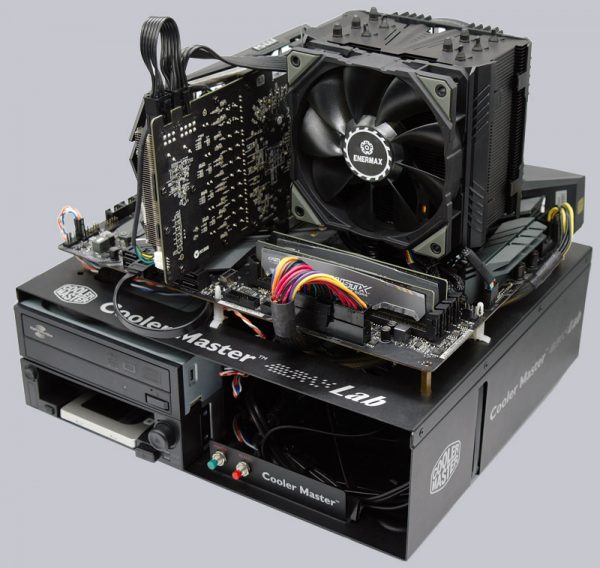

The Intel LGA 1151 power consumption will vary depending upon the hardware and upon the PC load. The current consumption of the test PC with Intel Coffee Lake CPU, 2x 4GB DDR4-2400 memory, SSD and Cooler Master Silent Pro M 600W test PSU without overclocking depending upon load:
– With MSI Radeon R9 280 graphics card, the total Intel Core i7-8700K PC power consumption was 46.3W idle and 272.8W full load.
– With integrated Intel UHD Graphics 630 GPU, the consumption was 29.3W idle and 119.9W full load.
A ASRock H370 Performance Intel H370 motherboard with the Intel Core i7-8700K LGA1151 v2 CPU required the following PC power consumption in comparison:
– With MSI Radeon R9 280 video card the Intel Core i7-8700K PC power consumption was between 49.7W idle and 284.1W load.
– With integrated Intel UHD Graphics 630 GPU the total consumption was 29.1W idle and full load 126.0W.
An ASRock Z270 Killer SLI Intel Z270 motherboard with an Intel Core i5-7600K LGA1151 CPU had the following power consumption:
– With MSI Radeon R9 280 graphics card the entire power consumption was 45.7W idle and full load 262.9W.
– With integrated Intel HD Graphics GPU 530 the total consumption was 34.8W idle and full load 117.4W.
A ASRock X399 Taichi AMD X399 motherboard with an AMD Ryzen Threadripper CPU required the following power consumption compared:
– With MSI Radeon R9 280 video card the AMD Ryzen Threadripper 1950X PC power consumption was between 77.5W Idle and 305.3W load.
A ASRock X370 Taichi AMD X370 motherboard with an AMD Ryzen AM4 CPU required the following power consumption compared:
– With MSI Radeon R9 280 video card the Ryzen 1600 PC power consumption was between 52.5W idle and 265.1W load.
– With MSI Radeon R9 280 video card the Ryzen 1800X PC power consumption was between 55.1W idle and 284.8W load.
An ASRock Z170 Extreme6 Intel Z170 motherboard with an Intel Core i5-6600K LGA1151 CPU had the following power consumption:
– With MSI Radeon R9 280 graphics card the entire power consumption was 50.5W idle and full load 259.1W.
– With integrated Intel HD Graphics GPU 530 the total consumption was 36.0W idle and 70.7 Watt at full load.
An ASRock X99 Extreme6 motherboard with an Intel Core i7-5930K LGA1151 CPU and 4x 4GB DDR4 had the following power consumption:
– With MSI Radeon R9 280 between 60.5W idle and 290.4W load.
An ASRock Z97 Extreme6 Intel Z97 motherboard with an Intel Core i5-4670K CPU had the following power consumption:
– With MSI Radeon R9 280 between 53.1W idle and 270.7W load.
– With Sapphire HD6870 graphics card the entire power consumption was 55.8W idle and 219.5W full load.
– With integrated Intel HD Graphics 4600 GPU the total consumption was 33.5W idle and 94.5 Watt full load.
An ASRock Fatal1ty FM2A88X+ Killer AMD Socket FM2+ motherboard with an AMD A10-7850K Kaveri APU had the following PC energy consumption:
– With Sapphire HD6870 between 56.3W idle and 233.5 Watt full load.
– With internal AMD Radeon R7 GPU between 30.2W idle and 118.8 Watt full load.
An ASRock FM2A85X-ITX AMD Socket FM2 motherboard with an AMD A10-5800K Trinity APU had the following power consumption:
– With Sapphire HD6870 graphics card from 52.9W to 221.0 Watt.
– With internal AMD Radeon HD7660D GPU 29.4W idle and 120.4 Watt full load.
The power consumption costs of your PC with or without overclocking according to performance and runtime, can be calculated with our interactive PC power consumption calculator.
