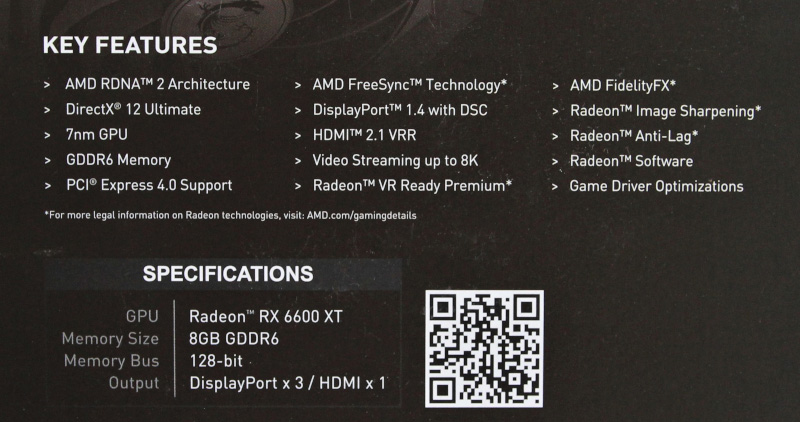

The technical data …
| Manufacturer | MSI |
| Description | Radeon RX 6600 XT Gaming X 8G |
| Dimensions | 277 x 130 x 51 mm (LxWxH) |
| GPU | Navi 23 XT RDNA 2 Shader units: 2048 Texture units: 128 ROPs: 64 Standard clock 2064 MHz Boost: 2428-2607MHz |
| RAM | GDDR6 8 GB 2000 MHz 128-bit memory connection 256 GB/s memory bandwidth |
| Cooling | 3-slot cooler 2x axial fans (100mm) 0dB zero fan mode |
| Connection | 3 x Display Port 1.4a 1 x HDMI Port 2.1 |
| Miscellaneous | PCI-Express 4.0 (Mechanical PCIe x16 connector, but chip connection with 8 PCIe lanes. Full bandwidth only with PCIe 4.0 or higher) DirectX 12 Ultimate OpenGL 4.6 Real-time ray tracing AMD Infinity Cache (32MB) HDCP Support 2.3 LED lighting (RGB) Base clock overclocked (+96MHz) Boost clock overclocked (+18MHz) Power consumption 160W |
MSI Radeon RX 6600 XT Gaming X 8G graphics cards Layout, design and features …
