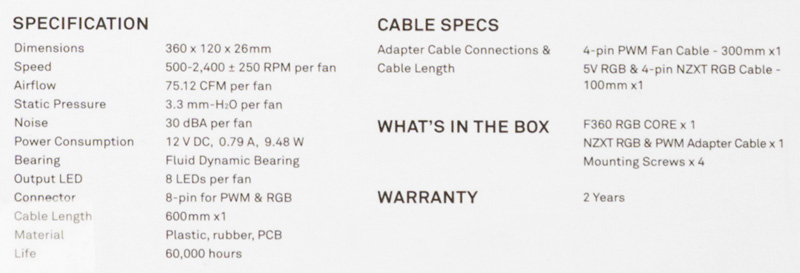

The technical data of the NZXT F360 RGB Core …
| Manufacturer | NZXT |
| Description | F360 RGB Core |
| Model number | RF-U36HF-B1 (Black) RF-U36HF-W1 (White) |
| Dimensions | 120 × 360 × 26 mm (L×W×H) |
| Weight | 476g |
| Fan | 3x NZXT 120mm A-RGB |
| Technical specifications per fan | Liquid bearing 500 – 2400 rpm 12V / 0.79A 3x 75.12 CFM 3x 3.3 mmH2O |
| Lifespan | 60,000 hours |
| Lighting | eight addressable RGB LEDs per fan 5V/0.81A total |
| Miscellaneous | An 8-pin NZXT combination connector for fan and RGB cable length 60cm |
| Warranty | 2 years |
| Accessories | Splitter cable for connection to standard A-RGB sockets and PWM fan connectors, 4 fixing screws |
The advertised data for air flow and pressure are impressive. Our practical tests will show whether they hold up in reality.

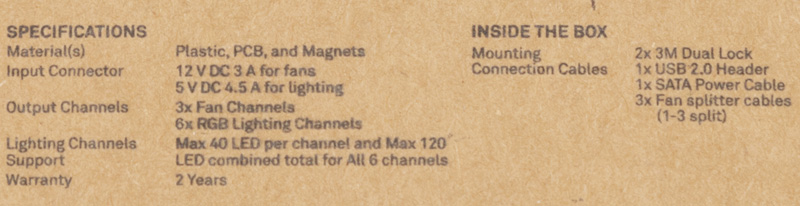

The technical data of the RGB & FAN Controller …
| Manufacturer | NZXT |
| Description | RGB & FAN Controller V2 (2022) |
| Modellnummer | AC-CRFR0-B1 | Dimensions | 100 × 70 × 16.5 mm (L×W×H) |
| Weight incl. fan | 110g |
| Fan connection | 3x 4-pin PWM 12V 3A max. total |
| RGB-Connection | 6x NZXT 4-pin A-RGB (proprietary) max. 40 LEDs per channel max. 120 LEDs in total |
| Other connection | USB2.0 connector for internal USB2.0 header SATA connector for power supply |
| Accessories | 3x splitter cables for connecting 3 fans each to one socket 4x Velcro connectors to stick on One multilingual operating manual |
| Warranty | 2 years |
| Miscellaneous | magnetic mounting option Windows 10 / 11 compatible |
NZXT F360 RGB Core Layout, design and features …
