Here are the technical data according to the manufacturer …
| Manufacturer | OCZ |
| Article number | VTR180-25SAT3-480G |
| Capacity | 480GB (NAND) |
| Interface | SATA3 6GB/s |
| Cache | 2x 512MB |
| Controller | Indilinx |
| Flash Type | Toshiba A19nm – Multi-Level-Cell |
| Size | 2.5″ (99.7 x 69.75 x 7mm) |
| Weight | approx. 115g |
| Power Consumption | Idle: 0.85W Active: 3.7W |
| Speed | Read up to 550 MB/s / Write up to 530 MB/s |
| Seek Time | |
| MTBF | 2.3 million hours 92TB total bytes written (TBW), equal to 50GB per day for 5 years |
| Other | SMART Support, 256-Bit AES-Encryption, RAIN, ECC, TRIM, Idle Time Garbage Collection, Data Path Protection BCH ECC, PFM+ Power Failure Management Plus, Acronis True Image HD cloning software registration key, 3.5-inch SSD desktop adapter bracket, 5-Year ShieldPlus Warranty (USA, Canada, Taiwan and European Union) |

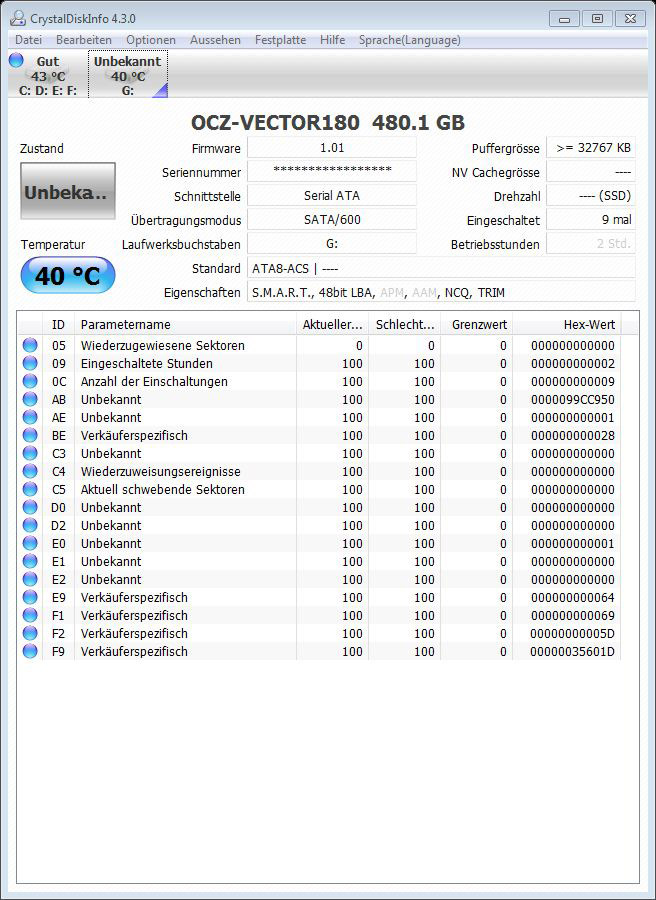

Here is a screenshot of the CrystalDiskInfo 4.3.0 SSD and HDD information software, where is immediately noticeable, that the OCZ SSD is equipped with a temperature sensor – after benchmarks, we measured a maximum SSD temperature of 42°C.
