| Manufacturer | Seagate |
| Article number | ST91000640NS |
| Capacity | 1TB |
| Interface | SATA3 6GB/s |
| Cache | 64MB |
| Rotation speed | 7200 rpm |
| Flash Type | – |
| Size | 2.5″ (100.45 x 70.10 x 15.00mm) |
| Weight | 200 gramm |
| Speed | Read up to 115 MB/s |
| Seek Time | 4.16ms |
| Power Consumption | 2.95 Watt idle / 3.84 Watt average in operation |
| MTBF | 1.4 million hours |
| Other |
SeaTools for DOS Diagnostic, SeaTools for Windows Diagnostic, DiscWizard for Windows, Product Manual as download available, designed for 24×7 operation, depending on the type with AES-256 SED (Self-Encrypting Drive) Self Monitoring, Analysis and Reporting Technology – SMART, Worldwide Name – WWN for unique drive identification |

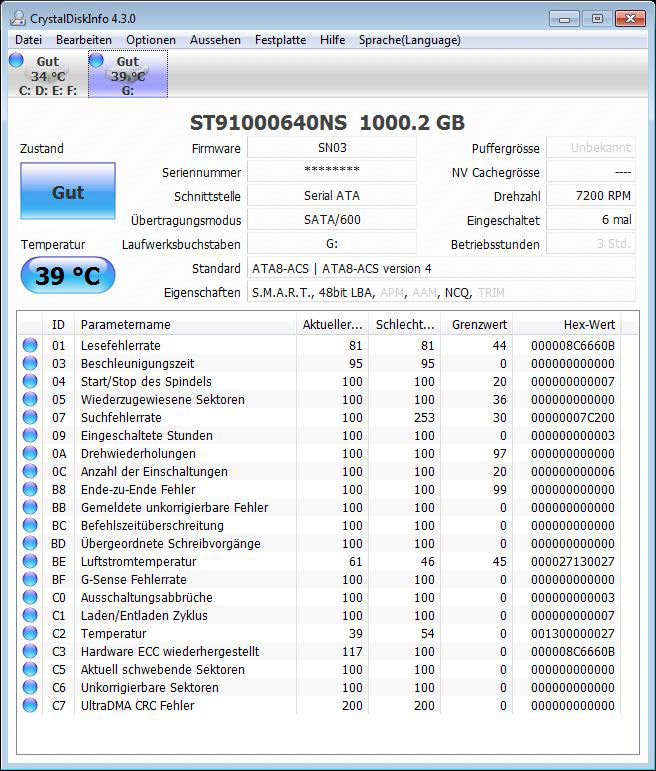

Here is a Snipping screenshot of the CrystalDiskInfo 4.3.0 HDD and SDD information software:
HDD firmware update …
At the review date, the company Seagate provided the firmware version SN02 for the constellation has. 2 hard drives, which has been updated before the test. The update of Seagate firmware can be done quite simply, because the firmware download is an ISO file with a tool for creating an USB boot stick. However, when you get an “undefined video mode number: 310” error message during upgrade, confirm it with space, then select firmware download (!?!) and then automatically starts the update for all possible drives. In the current review, we have updated the latest firmware SN02 to the drive, which was delivered with the firmware SN01.
