Layout, design and features outside …

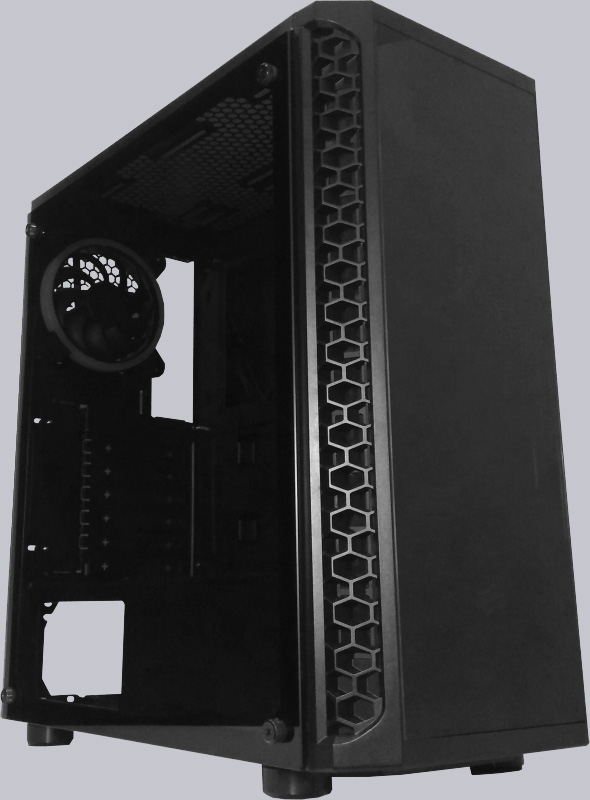

The Signum SG1X TG RGB is a classic Midi ATX dual-chamber chassis with a lower compartment for PSU and drives and the upper section for mainboard, graphics card, cooling etc.

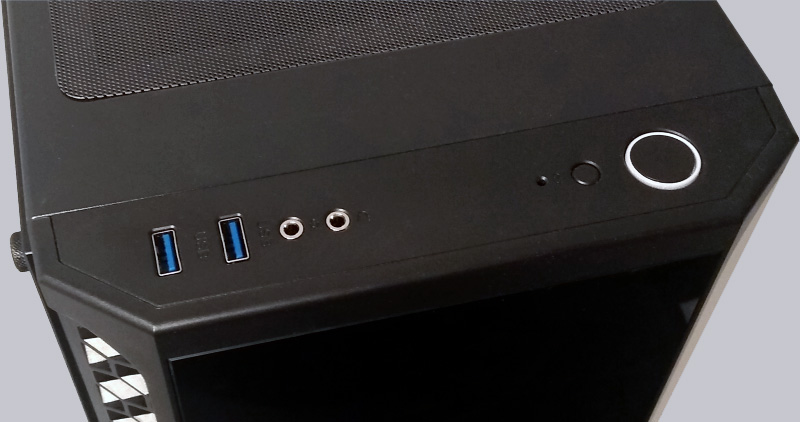

The Front Panel Connection and buttons are located on the front of the top of the housing. There are two USB 3.1 type A connections and 3.5mm jacks for headphones and microphone, a USB type C connection is not available. The power button is covered with a LED ring (Power LED & HDD LED), the reset button is slightly recessed.
On the top side, the SG1X has a large-area ventilation grille with a magnet-fixed dust filter. There is space for up to 2 140mm fans or corresponding radiators.

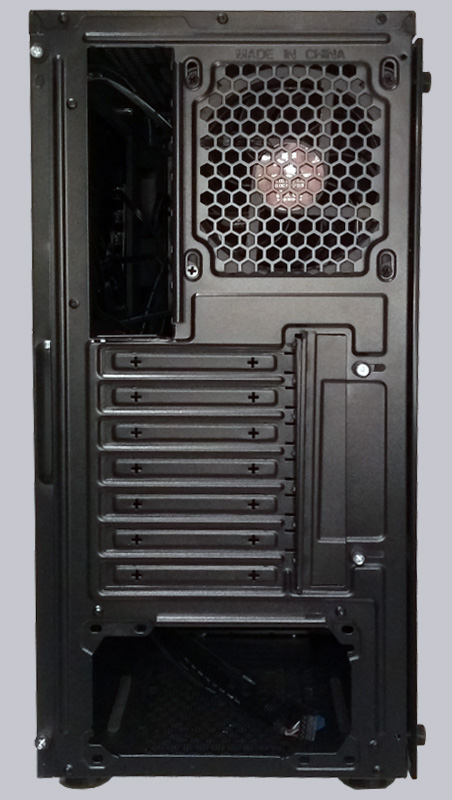

The rear panel offers a total of seven slot panels for expansion cards. These must be broken out with a little bit of dexterity. Screw-on slot bezels are not included. There is room for a rear fan with 120mm, a Corona HP RGB 120 is pre-installed.

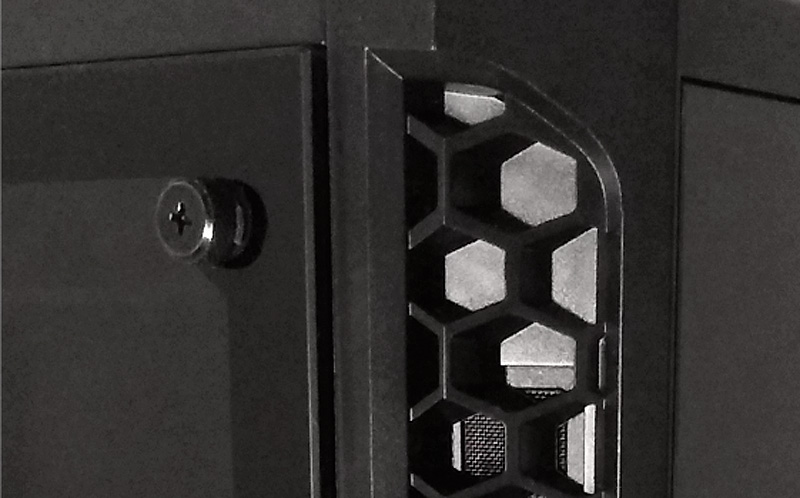

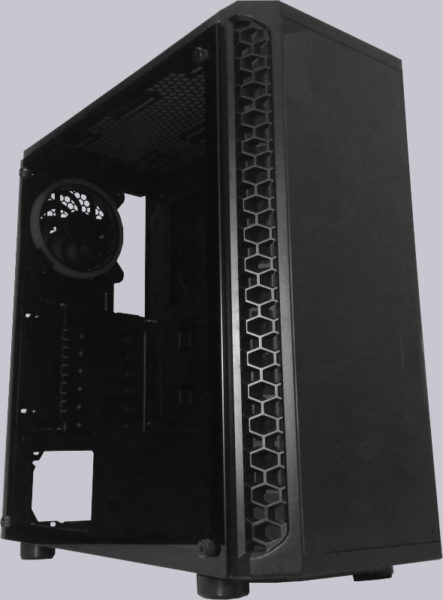

The side window is made of 3mm thick tempered glass and is fixed with four rubber-buffered screws.

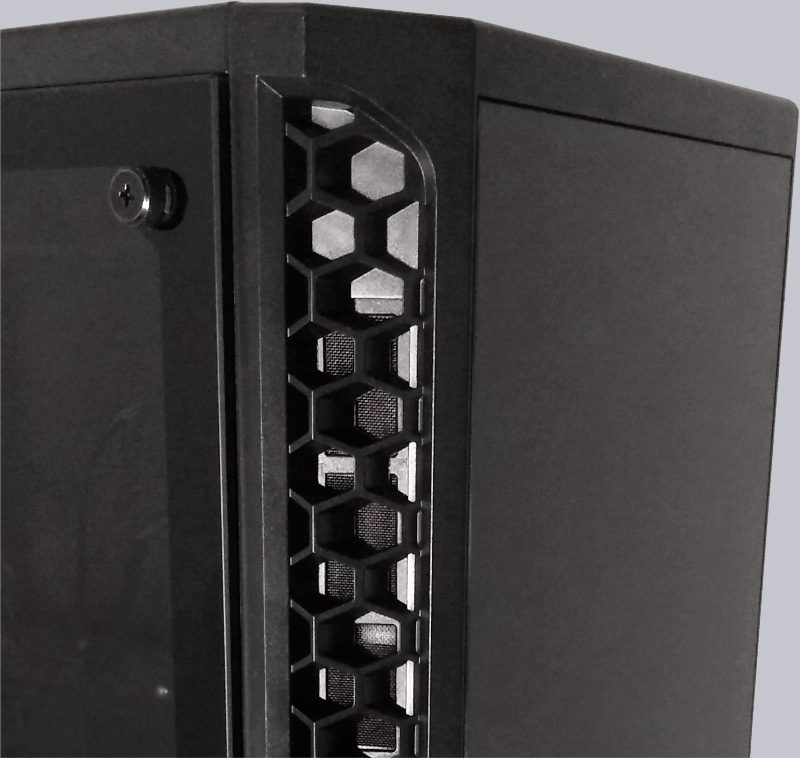

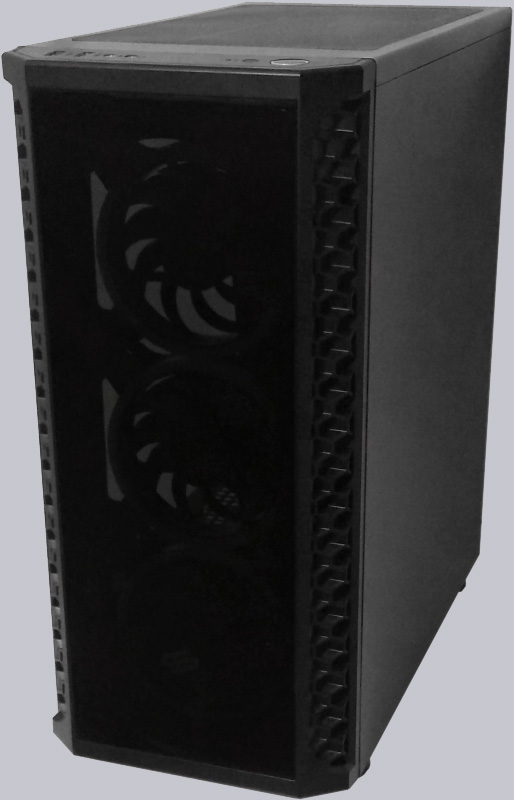

The front is also equipped with a large glass pane. On the side of the front frame there are honeycomb air inlets, which provide a good airflow and are equipped with dust filters.

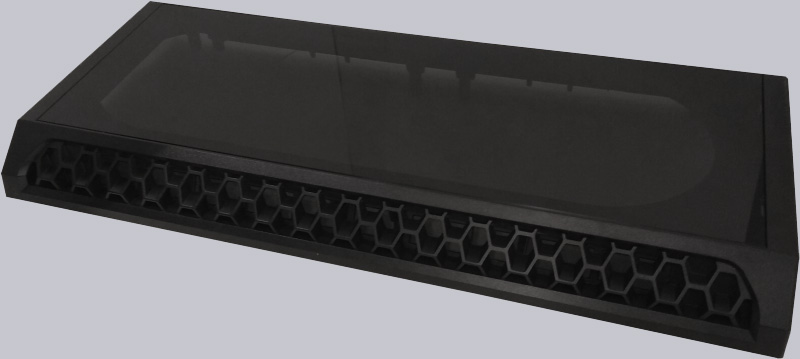

The entire front frame can be removed in a few easy steps and then provides easy access for installing the front fans.

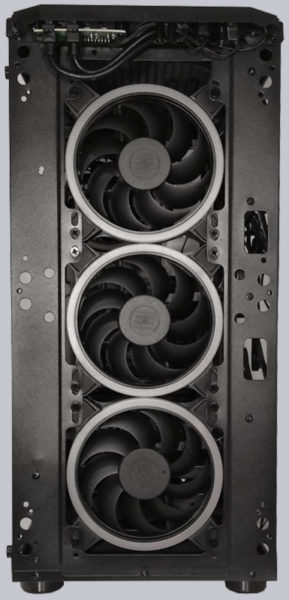

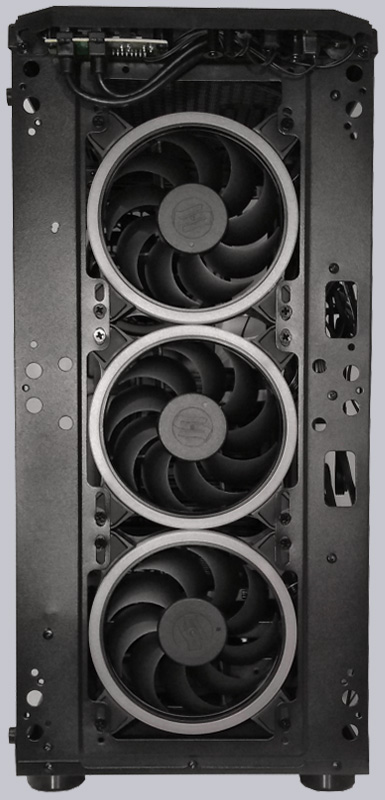

At the front of the case there is space for three 120mm fans or a corresponding 360 radiator. The SG1X TG RGB already has three Corona HP RGB 120 fans pre-installed here.
